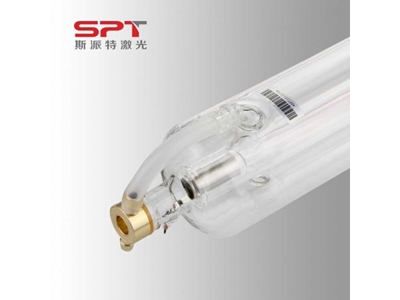

60W Co2 Laser Tube

Abp Laser SPT-T75

60W Co2 Laser Tube

• SPT-T75 Main Parameters

• Model SPT-T75

• Length 1050mm

• Pipe Diameter 80±1mm

• Wavelength 9.6~10.6um

• Output Power Stable Value 60W

• Maximum Output Power 75W

• Trigger Voltage 18KV

• Working voltage 14kv

• Working Current 22mA

• Maximum Working Current 25mA

• Coolant Cooling 15-25℃, 7L/min

• Pulse Frequency 100% - 5KHZ

• Spot Diameter 5±1mm

• T series CO2 laser tube has the characteristics of high quality laser beam, high cutting speed, small volume and long life of laser tube. Our unique laser coating technology increases the power of the laser tube and extends its life.

• To ensure the consistency of laser tube quality, we carry out precise digital control and very strict quality control in our production process through laser tube blank burning process, resonance cavity catalyst coating, grinding mirror assembly and high precision gas charging technique.

• Advantage:

• 1. Unique Shape Design

• SPT CO2 laser tube has a unique structure, not only maintains the appearance of the beauty of the CO2 laser tube, but also multiplies the bending capacity of the tube body, so that the working stability of the CO2 laser tube is greatly improved.

• 2. important cutting speed

• Using the basic membrane beam quality design, SPT CO2 laser tube shows product quality, the same power compared to other products on the market, the cutting speed of SPT CO2 laser tube is obviously higher than other CO2 laser tube.

• 3. Long Life and High Power

• SPT CO2 laser tube has its own exclusive patent. Their application combined with catalytic technology greatly increases the life and power of the laser tube. Like 150w SPT CO2 laser tube, the maximum output power can reach about 180W. Other company's CO2 laser tube may only be beyond ours.

• 4. Lightweight

• To compare SPT CO2 laser tube with other general Co2 laser tubes, the weight of our SPT CO2 laser tube is lighter than others. This will help it have a more diversified application on CO2 laser tube.

• 5.Long Warranty

• SPT laser company believes that “QUALITY IS OUR CULTURE”. So we hope to always provide the best service to all our buyers. One of our key advantages is After-sales service, we promised that our SPT CO2 laser tube 150w will give you 6 months warranty.

• 6.resonable price

• SPT CO2 laser tube offers reasonable price for all our customers, compared to all other CO2 laser suppliers, we think our products can provide you a different experience.

• SPT CO2 laser tube, welcome to inquiry.

• CO2 laser (laser tube) Installation instructions

• 1. Make sure the electrodes are connected correctly;

• 2. Cooling water pipe installation. When installing water pipe, please make sure that the cooling water inlet is between positive and negative and falls into the water, and the interface is not leaking. Before starting the laser tube, there should be enough water in the water cooling pipes and there should be no air bubbles before use (must always be checked before starting the laser tube). If the laser tube is installed vertically, please make sure there are no air bubbles on the top of the laser tube. It will cause thermal shock when the laser works with air bubbles in the water pipe, which is easy to damage your pipe.

• 3. To keep the good performance of the laser tube, keep the cooling water temperature between 20-25°C. The instability of the temperature of the cooling water affects the laser tube output power.

• 4. When installing the laser tube, please make sure 1/4 point in laser tube length is on the laser tube holder, this can help your laser tube achieve the best working performance. And leave enough space between the laser tube positive end (which has high voltage electricity) and the metal surface of your laser machine. If the area is not large enough, it will cause ignition between the high voltage power used to trigger the laser tube and the metal surface of the laser machine, thus causing damage to your laser tube and failure of the main electronic components in your laser machine.

• 5. Suggest laser machine consumers to put automatic charge device in your laser tube water cooling system to prevent laser tube stoppage caused by overheating failure due to lack of water when laser tube working, please consult your laser machine supplier for details.

• Our services:

• SPT Laser has specialized in laser tube manufacturing and laser technology for over 10 years. We will provide the following services.

• 1. High Quality Products with Competitive Price.

• 2. All orders are guaranteed to be dispatched within 3 business days after payment.

• 3. If any quality problems are confirmed during the warranty, the new laser tube for warranty replacement will be sent together with your new order without any extra charge.

• CO2 Laser Tube Common Operation Problems

• Weak output laser power

• 1. Check whether the laser tube support is drawn to the right point on the laser tube output lens and laser tube (marked as "recommended support point" on the SPT laser tube).

• 2. Check laser machine, service voltage, cooling water temperature, cleanne output current
