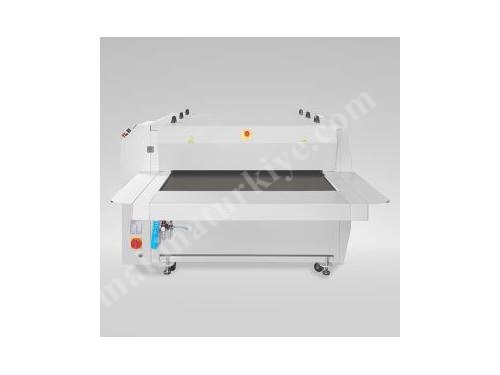

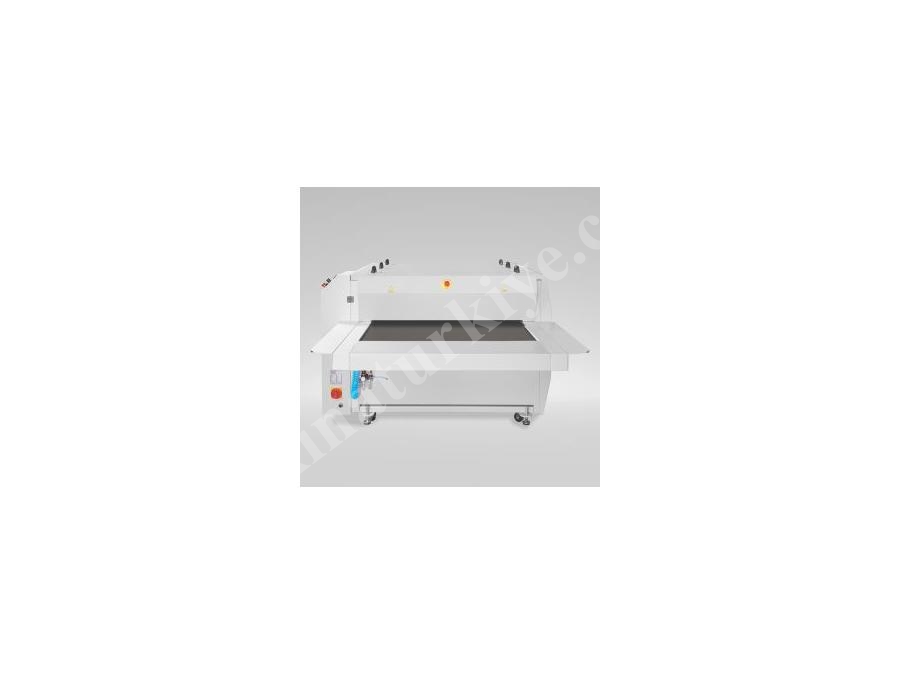

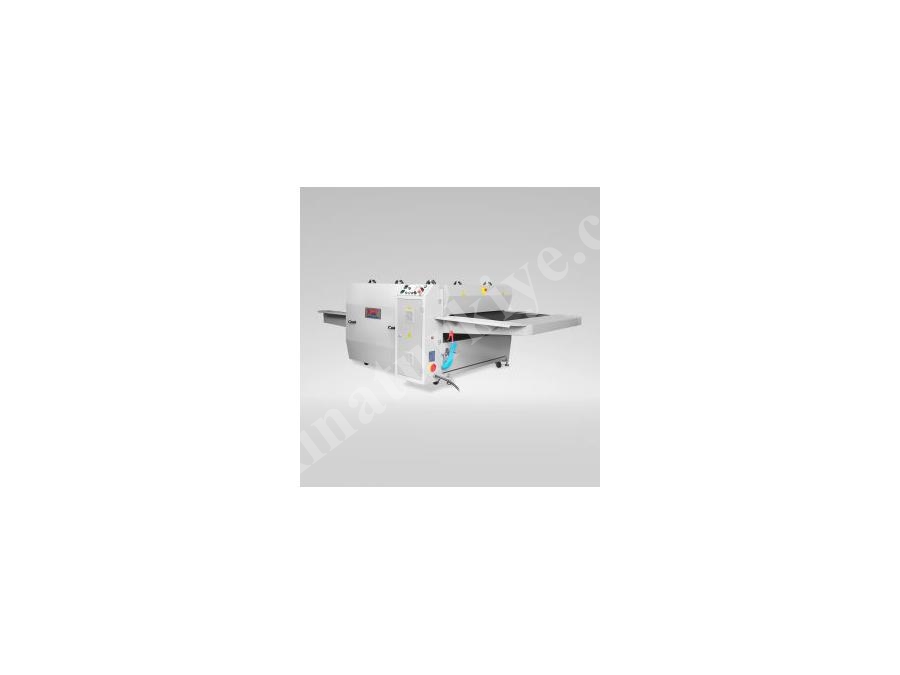

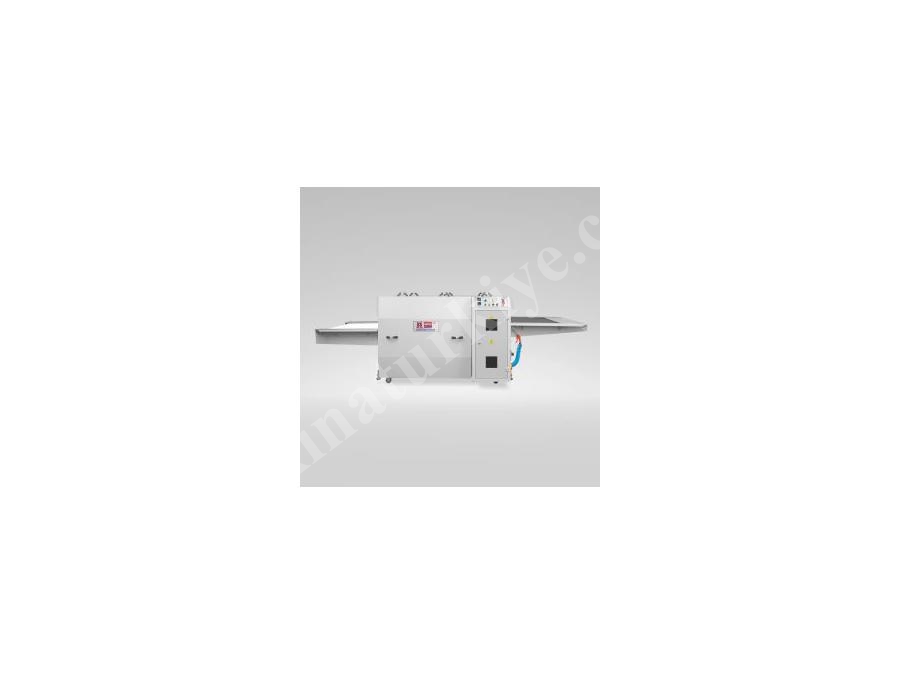

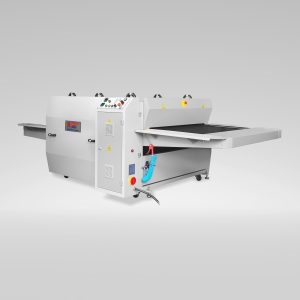

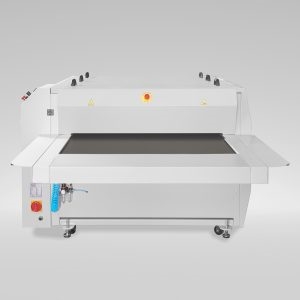

75 Cm Fusing And Transfer Heat Press Machines

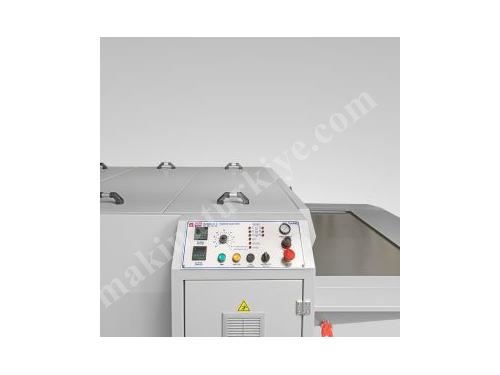

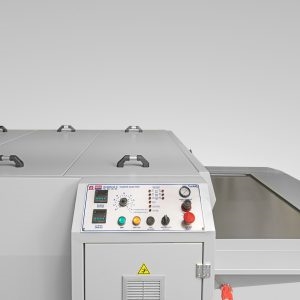

It is used for fusing, ironing, sequin application, and transfer heat press processes in the ready-made clothing industry. Its area of application generally relates to the fusing of trousers, shirts, and t-shirts. It is highly efficient also in the sequin and transfer heat press applications. Switches are used for preventing the slipping of tapes thanks to the pneumatic system. Pressure is adjusted by means of the pistons thanks to the pneumatic system. Optimum and homogeneous printing is obtained thanks to the wide printing rollers found at the outlet. The special splicing tapes used in our machines eliminates the trace problem on the product worked and doubles the tape lifetime. Tape width varies from 60 cm to 75 cm, 100 cm, 120 cm, 160 cm, and 180 cm depending on models. Our machines are equipped with two resistance groups; i.e., upper and lower resistance systems. PID heat control system maintains the heat balance, ensures individual controls, and enables precise temperature adjustment. Tape is cleaned and fused products are taken by means of the rotary silicone scrapers of machines. The cooling unit positioned at the outlet helps to ensure the faster cleaning of fused products.

TECHNICAL CHARACTERISTICS	STP 600 DLX	STP 750 DLX	STP 1000 DLX	STP 1200 DLX	STP 1600 DLX	STP 1800 DLX
RESISTANCE POWER	16 KW	26 KW	30 KW	34 KW	38 KW	42 KW
FUSING DURATION	5 – 30 SEC	5 – 30 SEC	5 – 30 SEC	5 – 30 SEC	5 – 30 SEC	5 – 30 SEC
PRESSURE	0 – 15 KG	0 – 15 KG	0 – 15 KG	0 – 15 KG	0 – 15 KG	0 – 15 KG
MAX TEMPERATURE	0 – 200 °C	0 – 200 °C	0 – 200 °C	0 – 200 °C	0 – 200 °C	0 – 200 °C
MAX TAPE SPEED	0 – 15 m/min	0 – 15 m/min	0 – 15 m/min	0 – 15 m/min	0 – 15 m/min	0 – 15 m/min
VOLTAGE	380V AC 50 HZ	380V AC 50 HZ	380V AC 50 HZ	380V AC 50 HZ	380V AC 50 HZ	380V AC 50 HZ
DIMENSIONS	131 x 400 x 128 cm	146 x 400 x 128 cm	171 x 400 x 128 cm	191 x 400 x 128 cm	231 x 400 x 128 cm	251 x 400 x 128 cm
WEIGHT	575 kg	640 kg	750 kg	840 kg	980 kg	1050 kg
