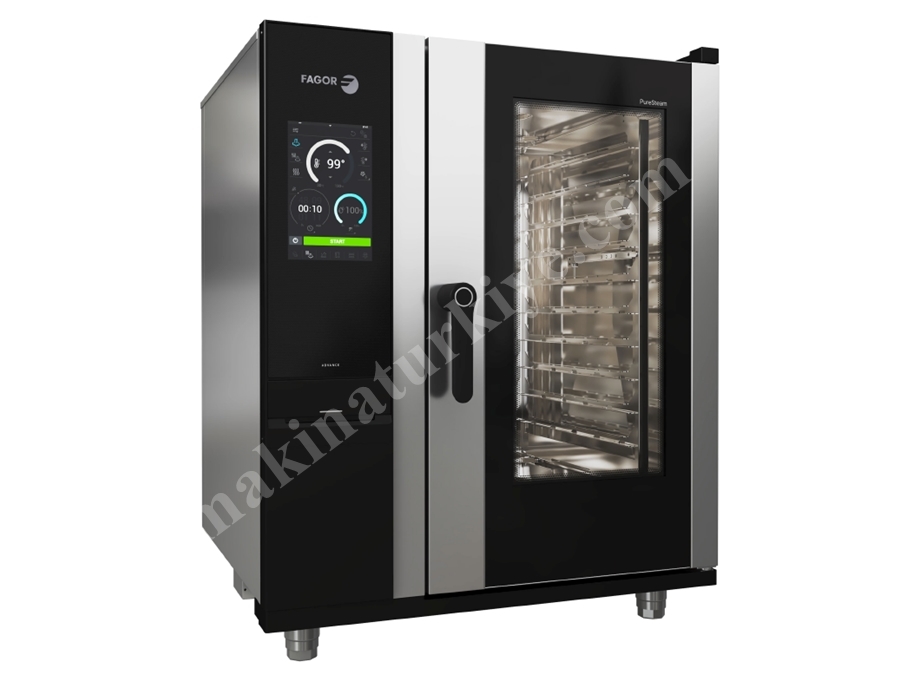

10 Tepsi 1/1 Elektrikli Buharlı Dijital Konveksiyonel Fırın

DENOMINATION:

iKORE oven Advance (touch control panel), PureSteam (boiler models) with

basic washing system for 10 trays GN 1/1, electric heating. Configurable

DESCRIPTION :

FUNCTIONS:

- 10.1'' glass state of the art touch screen for easy and intuitive

operation

- iCooking: Smart cooking process with automatic adjustment:

. Options at the end of the cooking process: maintain temperature,

repeat cooking process, etc.

. Ability to modify smart cooking processes in progress and adjust

parameters at any time

- Additional functions (regeneration, sous vide, overnight cooking,

fermentation, pasteurisation, smoking, charcuterie and dehydration).

Smart cooking processes with automatic adjustment

- iClima:

. Humidity management and control by means of direct measurement with

a humidity sensor

. 1% regulation capacity

- Fagor Cooking Center:

. 200 factory preset and culinary tested recipes

. Ability to manage your favourite recipes

. Unlimited 9-stage recipe storage capacity

- Air and water cool-down (rapid cabinet cooling function)

- Multitray

- Cooking modes: low temperature steam 30-98º, steam 99º, super steam

100- 130º, mixed 20-300º and convection 20-300º

- Chamber dehumidification for crispy roasts

- DeltaT cooking for delicate cooking

PURESTEAM:

- Higher steam saturation in the chamber than an injection oven

- Pure steam generator with automatic filling function

- Impurities in the water are deposited in the boiler, facilitating the

maintenance of the oven and an impurity-free cooking chamber.

- Steam generator equipped with limescale detector.

Automatic and adjustable emptying of the generator every 24 hours of

cooking.

- Limescale detection system

- Semi-automatic descaling system

- Guided descaling programme

CONTROLS:

- EasyCooking: option to configure the programmes by password

- Languages: 36

- Ability to configure screen tone, volume and contrast

- Tones: 8

- Power, network and language settings

- Integrated help functions and instruction manual

- Control and monitoring of the equipment from mobile devices via

FagorKonnect

- SAT and Trade fair mode

EQUIPMENT FEATURES:

- Stop/start function

- EZ-Sensor: Internal probe with 4 measuring locations

- Positioning aid for temperature sensor

- Manual steam injection

- Automatic dehumidification system

DIMENSIONS

X Width 898 mm X Gross width 980 mm

Y Depth 817 mm Y Gross depth 953 mm

Z Height 1117 mm Z Gross height 1340 mm

Net Weight 130,0 kg Gross Weight 160,0 kg

Net volume 0,820 m3 Gross volume 1,251 m3

ELECTRICITY TECHNICAL SPECIFICATIONS

Engine power 0,60 kW

Electric power 18,600 kW

Amperage (A) 27,7A / 48,2A / 83,5A /27,7A

Heating power 18,00 kW

WATER TECHNICAL SPECIFICATIONS

Pressure H2O: 200-400kPa(2-4bar)

Water max consumption 10,00 L/h

CONNECTIONS TECHNICAL SPECIFICATIONS

230 V three-phase wiring 3X10MM2+T- 50A

Single-phase 230V wiring 2X25MMÇ+T-100A

Three-phase +N 400V wiring 3X6MM2 +N+T-32A

Water inlet diameter 3/4´´

Drain 1 diameter 40
