100 Watt Lazer Markalama Ve Kesim Makinası

100 Watt Lazer Markalama Ve Kesim Makinası

Laseral Jewelmark

Yer tasarrufu sağlayan, ergonomik, kompakt ve tam entegre tasarım  , istenen parça yüksekliğini taşımak için kabin hacminin maksimum kullanımı sayesinde, parçaların ve 300mm strok Z Ekseni'nin konumlandırılması ve sabitlenmesi için T yuvalı bir Alüminyum taban platformu ile desteklenir .

Bu tasarlanmıştır  özellikle mücevher ama   bir tür tıbbi, elektronik ve promosyon olarak metal ve plastik malzemeler üzerinde işlemek neredeyse ortaya çıkmasıyla birlikte, her sektör kolayca kullanmak mümkün olacak ve bu sistem ürünlerde mükemmel markalama sonuçları elde ederek rekabet şansı artacaktır.

Entegre değerli metal geri kazanım filtrasyon sistemi ve daha fazlası ile kuyumcular için gerekli tüm özellikleri barındırır.

İsteğe bağlı olarak, döner bir cihaz, pnömatik sıkma cihazı ile donatılabilir.

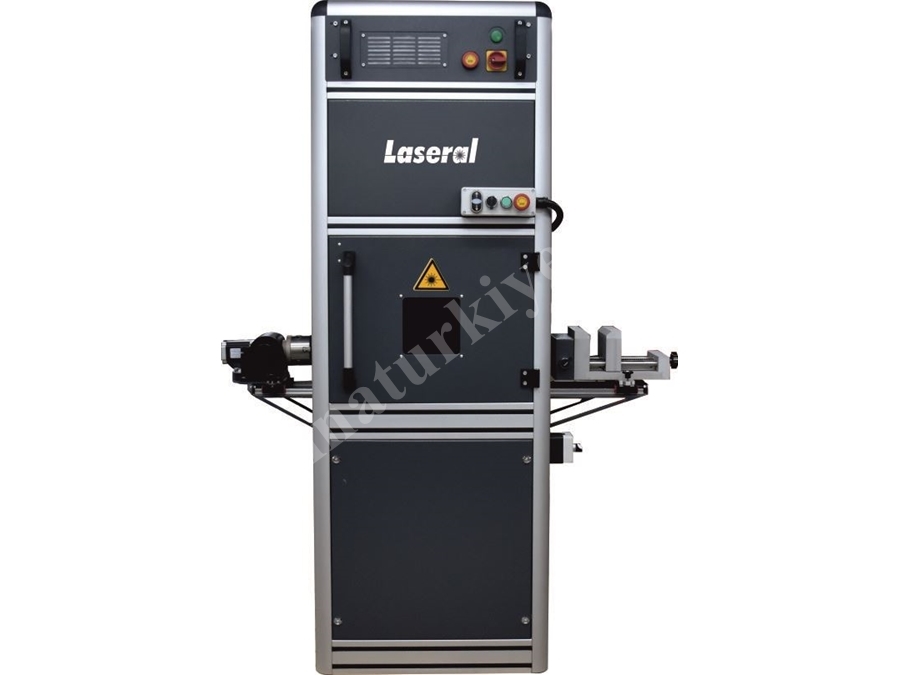

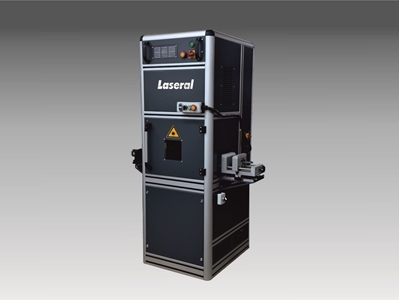

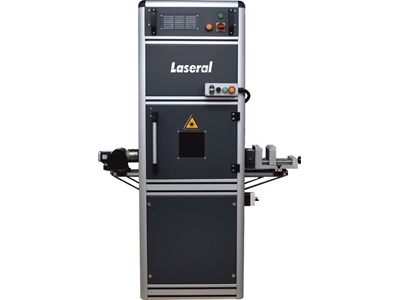

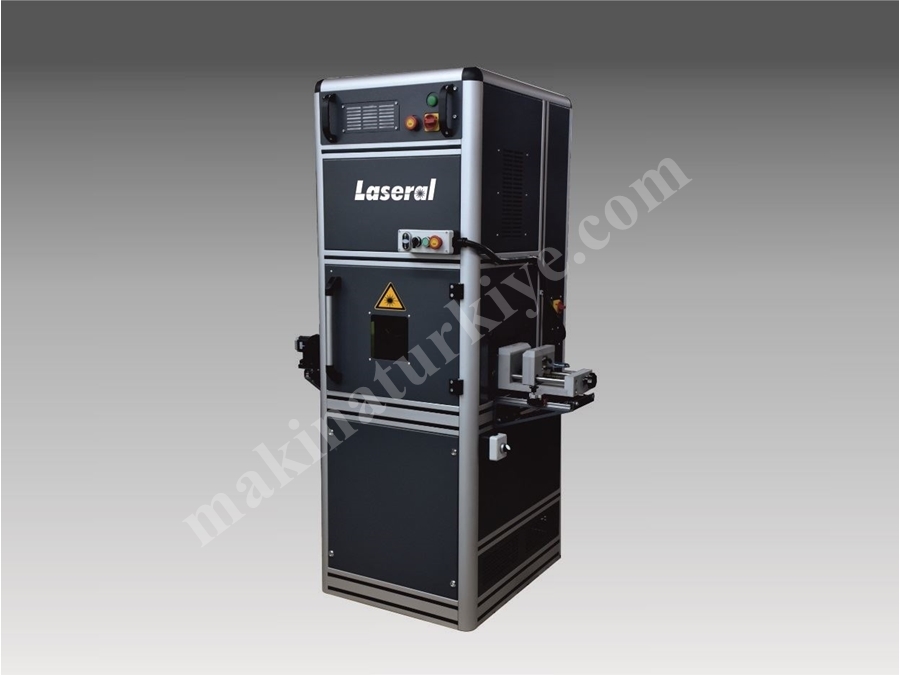

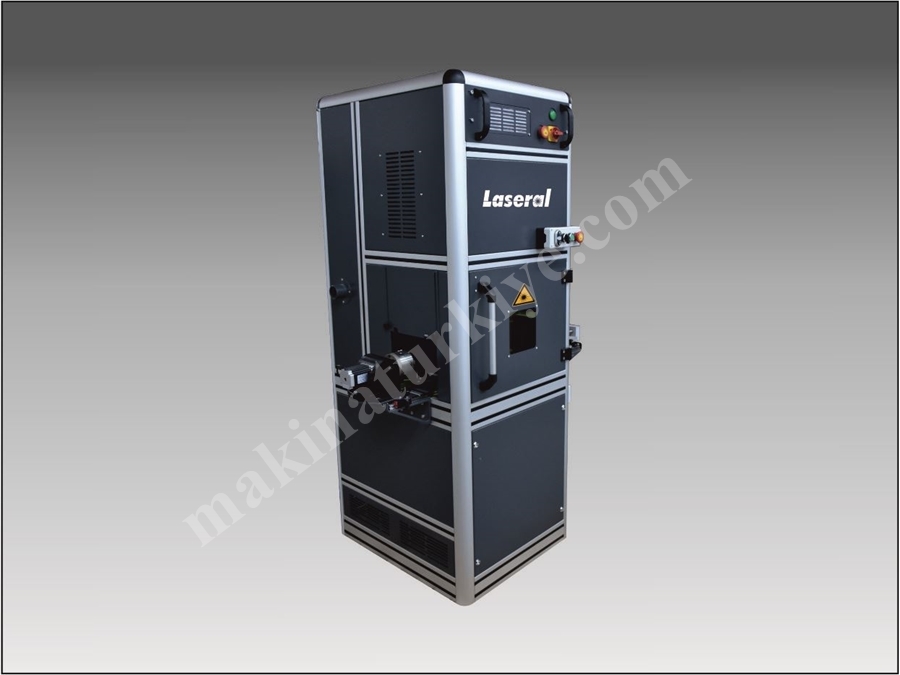

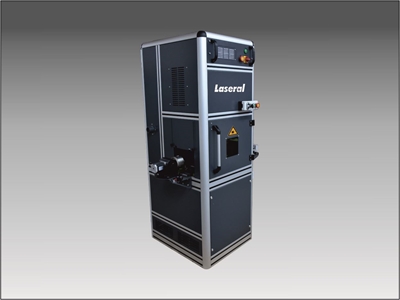

JEWELMARK Laser Marking System

JEWELMARK laser marking system is designed for marking and engraving of all types of metals and metal alloys, weather coated or painted metal or not and especially for precious metals in the jewel industry. Its fiber laser technology provides very low service and operating costs.

LASERAL is the true choice for every marking and engraving application. When you require a flexible solution in the form of an enclosed system for ensuring work safety or specialized with additional mechanical functions for jewelery, JEWELMARK is the ideal system.

JEWELMARK laser marking system can be combined with fiber laser sources, which are available with different average power outputs 20W, 30W, 50W, 100W.

 Safety class 1 cabin system for work safety.
 OD + 6 laser protection glass provide transparent processing.
 Safety switch against the opening door during the laser operation.
 Automatic controlled, adjustable Z-axis.
 T-slotted Aluminium platform for precise positioning and fixing of the parts.
 Internal fume extractor for harmful gases and smoke occured during the operation.
 Special filtering for recovering of precious metals.
 Flexible operating with front door and hinged door at two sides.
 Rotating device and clamp included design for different applications.
 Space-saving, compact design.

Focussing Lenses

In the all marking systems, the size of the processing field is determined by the focussing lens (F-theta). A larger aperture translates into a bigger marking field and also increases the maximum achievable laser spot size on the surface of the workpiece. LASERAL focussing lenses are available with different processing fields 110mm x 110mm, 160mm x 160mm, 240mm x 240mm

Accessories

-Servicing Kit
