120/Minute Block Cutting Machine
| İlan No: | #00233798 |
| Kategori: | Poşet Kesim Makinası |
| Marka: | Gürçelik PKS |
| Model Tipi: | Pacific 1600-B |
| Ürün Tipi: | Satılık |
| Ürün Durumu: | Sıfır |
| Menşei: | Türkiye |
| Teslim Durumu: | Stokta Var |
| Konum: | Sultanorhan Mah. / Gebze / Kocaeli |
| Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur
Gürçelik Poşet Kesim Makinaları
Gürçelik Makina End. Otomasyon Sist. San. Ve Tic.A.Ş.

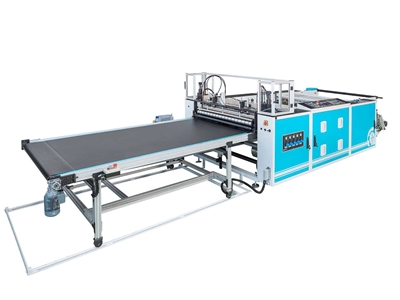

Pacific 1600-B
120/Minute Block Cutting Machine
Bottom stitched bags and block bags are produced.
Servo motor and inverter system
Control screen (Temperature, production quantity, machine speed, etc. can be monitored)
Bag size can be changed.
There is one photocell.
Thanks to the photocell, printed and unprinted bags are produced.
When the photocell does not see the printing, the roll is finished and the bag is collected in the jaw, the machine stops automatically; An error message appears on the operator panel.
Capacity to work with high density polyethylene (HDPE), low density polyethylene (LDPE) and 2nd quality recycling bags
edge control system
cold cutting system

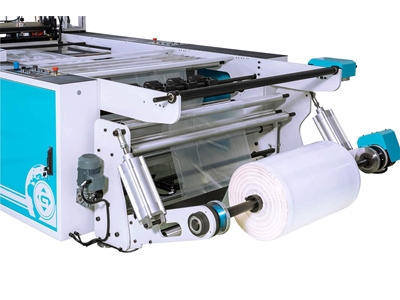

Pneumatic coil lifting system
The open side of the bag is stacked on the 10mm needle
Cut products are stacked on the conveyor belt
Hot slicing is optional.
Optional equipment can be added
Pacific 1600-B Technical Specifications
|
MODEL |
|
PACIFIC 1600-B |
|
Bag Width |
mm |
250-1500 |
|
Bag Length |
mm |
150-7000 |
|
Film Thickness |
mm |
0,007-0,0150 |
|
Production speed |
(pcs/min) |
120 |
|
Total Air Consumption |
Oiter/min) |
150 |
|
Total Power Consumption |
NW) |
20 |
