1350 mm Deburring Machine

Fiyat Sorunuz
Min. Sipariş 1 Adet

İlan No : #00206460
Kategori: Çapak Alma Makinesi
Marka: Famak
Model Tipi: 1350 R.R.
Ürün Tipi: Satılık
Ürün Durumu: Sıfır
Menşei: Türkiye
Teslim Durumu: Stokta Var
Konum: Yenidoğan Mh / Gürsu / Bursa
Kısa Detay: 2 Yıl Garantili
Satış Detayı: Havale / EFT, Görüşülür

Satıcıyla iletişim kur

Famak Zımpara Makina

Famak Zımpara Makina San. Tic. Ltd. Şti.

Danışman : İbrahim B.

Famak 1350 RR

1350 mm Deburring Machine

Model

1350 RR

Machine Name

1 Unit Metal Surface Sanding Machine

Machine Working Width (mm)

0 - 1350

Machining Thickness (mm)

0.8 - 120**

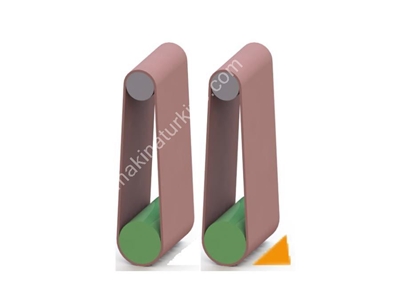

Drum Features

Ø180 mm, 70 Sh.

Sanding Belt Dimensions (mm)

1350 x 2620

Sanding cutting speed (m/s)

18

Engine Powers (kW)

(2x) 22

Material Thickness Control

Touch Screen Controlled

Conveyor System Features

There is

Thickness adjustment

Speed ​​adjustable feed (3 - 15 m/min)
Table Moving*

Machine Weight (kg)

2800

Machine Dimensions (mm)

2000 x 2100 x 2350

Electric panel

Siemens

Cover Safety Switch

There is

Engine Protection Thermals

There is

*The table is movable: The thickness adjustment is made by moving the conveyor belt up / down according to the material to be processed in the machine.

*Body moving: While the machine conveyor is fixed in this system, the thickness adjustments are provided by the body movement. It is offered optionally.

**0.8 - 120 : Vacuum must be added to the conveyor system for parts with thicknesses less than 0.8 mm. It is offered optionally.

Flat Surface Sanding

Flat Surface

Trimming

Trimming
