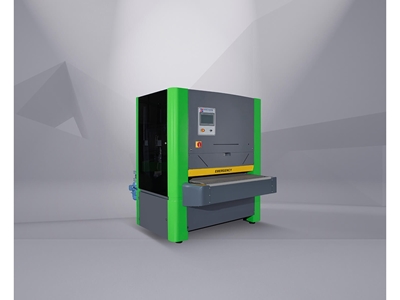

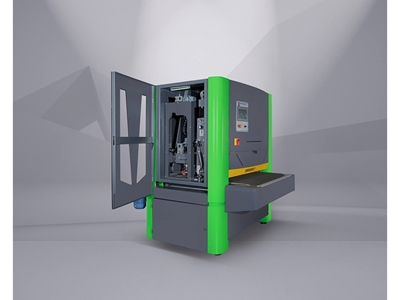

1350 mm Surface Sanding And Deburring Machine

‹ ›

Fiyat Sorunuz

Min. Sipariş 1 Adet

Satıcıyla iletişim kur

Famak Zımpara Makina

Famak Zımpara Makina San. Tic. Ltd. Şti.

Danışman : İbrahim B.

+90 224 342 41 55

+90 543 661 79 24

Şifre

Famak 1350 R.O.D.

Working Width mm	0 - 1350
Machining Thickness mm	0.5 - 120

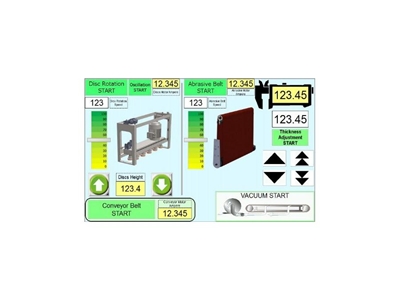

Control Board	PLC Touch Screen
Conveyor System Features	**Fixed table, Feed rate is adjustable (0.5 – 8 m/min.), Wear resistant conveyor belt 300 mm vacuum zone 5.5 kW
Weight kg	3200
*Dimensions WLH*	200021002300
Electric panel	Siemens, Schineder, Delta
Motor Drivers	Mitsubishi

* CE; European standard safety norms in compliance with 2006/42/EC - 2014/30/EC
* Standard Voltage 400V - 50 Hz - 3P

Unit 1
Unit Type	Role Unit
Unit Features	Ø180 mm, Rubber coated drum, 65-70 shor
Sanding Dimensions mm	2620*1350
Sanding cutting speed m/s	3 - 15 INVERTER control, speed adjustable cutting speed
Engine Power kW	15
Engine Brake System	There is
Standard sanding details	1 piece, 2620x1350, Zirconium, P120, Cloth Sandpaper

2.Unit
Unit Type	Orbital Disk Unit
Unit Features	Interchangeable round discs Diameter: 115mm, Connection: Hole 25mm (Clockwise) It can be adjusted according to different connection type.
Number of Discs	15
Disc Diameters mm	115
Disc changing system	with bolt
Disc unit thickness adjustment	PLC controlled thickness and pressure adjustment
Oscillation properties	Motor, 30 mm stroke
Disc rotation speed rpm	250 - 1,250 adjustable rotation speed with INVERTER control
Engine power kW	7.5
Standard disk details	15 pcs Hero Disc Ø115, P100
