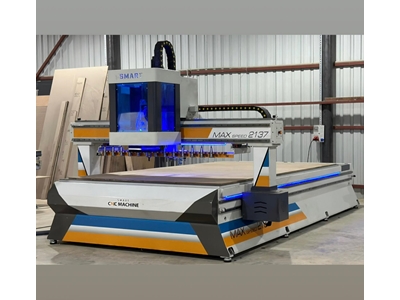

14 Servos With Fully Automatic Tool Changing Cnc Vertical Machining Center

· EXTERNAL DIMENSION: 2500 X 4500

· PROCESSING AREA: 2100 X 3700

ENGINES

· X AXIS: 1 SERVO MOTOR WITH REDUCER

· Y AXIS: 2 SERVO MOTORS WITH REDUCERS

· Z AXIS: 1 SERVO MOTOR WITH BRAKE,

· MOTION AXIS (LINEAR): 30' RAIL AND RAIL (STEEL GROUND) IN THE

· SPINDLE ENGINE: 9.0 KW (AIR COOLED BODY)

· CUTTING ENGINE SPEED: 24,000 RPM

· CONTROL: (ELECTRICAL and ELECTRONICS PANEL)

· CONTROL UNIT: NEWKER INDUSTRIAL

· STOP & SWİCH: THERE IS EMERGENCY STOP BUTTON ON ALL AXES

· TABLE: compact

· CHASSIS: STEEL LASER CUTTING

· PRECISION: REAL BORWEG RAIL SYSTEM PRECISION

. AUTOMATIC TOOL LENGTH MEASURING: INCLUDED

· VACUUM: 530m3 TYPE DRY

· TOOL CHANGE: 14 TOOLS UNDER THE BRIDGE MAGAZINE

· DUST EXTRACTOR: PINOMATIC DUST EXTRACTION APPARATUS

· SERVO MOTOR: YES

· NET WEIGHT: 6000 KG.

WITH OUR MACHINES THAT PROVIDE PROBLEM-FREE SOLUTIONS TO YOUR SENSITIVE PRODUCTS (CHIPBOARD, MDF,

YOU CAN PROCESS YOUR RAW MATERIALS WITH ALUMINUM, PLEXY, GOLD, SILVER ETC. WITH HIGH PERFORMANCE.)

· OUR MACHINES ARE MANUFACTURED TO WORK IN ACCORDANCE WITH OCCUPATIONAL SAFETY PRINCIPLES AND LAWS. (EMERGENCY STOP)

· PRODUCED WITH EMERGENCY STOP ON EVERY AXIS.

· YOU CAN RECEIVE ALL YOUR OVAL, ELLIPSE, RECTANGULAR AND CYLINDER WORKS IN THE MOST PRECISION SIZES WITH 1000/1 ERROR-FREE QUALITY.

· WE ARE FRIENDLY IN WELCOME TO CUSTOMERS, WE PROVIDE TIMELY TECHNICAL SUPPORT WITH OUR ARTIST TEAM IN MANUFACTURING, TRANSPORTATION, ON-SITE INSTALLATION AND WORK.

· WE ADJUST A RACK GEAR SYSTEM MM IN THE X AND Y AXIS COMPUTERIZED WARGEL SYSTEM IN ALL OF OUR MACHINES THAT WE PRODUCE.
