14 Sets Full Automatic Wood Cnc Router

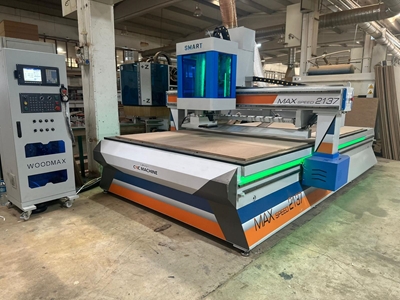

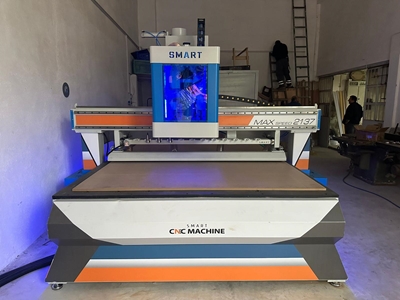

Smart CNC 2137 Woodmax

14 Sets Full Automatic Wood CNC Router

PROJECTED BY SMART CNC ROUTER

WE ARE PROUDLY AT YOUR SERVICE WITH OUR CNC MACHINES, A WONDER OF ENGINEERING AND R&D...

SMRT PLUS-A2136 SERIES

· EXTERNAL DIMENSION: 2500 X 4500

· PROCESSING AREA: 2100 X 3660

ENGINES

·

· Y AXIS: 2 PCS 1.5 KW KLP 120 KOFON SERVO MOTOR WITH REDUCER

· Z AXIS: 1 PC 1.0 KW BRAKE SERVO MOTOR,

· MOTION AXIS (LINEAR): HWIN 30' RAIL AND RACK AND RAIL (STEEL GROUND) ON THE

· SPINDLE ENGINE: 9.0 KW CC WITH TOOL CHANGE (AIR COOLED BODY)

· CUTTING ENGINE SPEED: 24,000 RPM

· CONTROL: INDUSTRIAL CONTROL (ELECTRICAL AND ELECTRONICS PANEL)

· CONTROL UNIT: INDUSTRIAL INTERFACE MANAGEMENT.

· STOP & SWİCH: THERE IS EMERGENCY STOP BUTTON ON ALL AXES

· TABLE: (COMPACT)

· CHASSIS: STEEL CONSTRUCTION LASER CUTTING AND PLASMA

· PRECISION: REAL BORWEG RAIL SYSTEM PRECISION

· VACUUM: REGIONAL SOLENOID CONTROL YES (630) (PYNOMATIC)

· TOOL CHANGE: 14 UNDER BRIDGE TOOLS WERE CHANGED

• AUTOMATIC Z PROBE TOOL LENGTH MEASURING

STOP PISTON AVAILABLE

• AUTOMATIC LUBRICATION UNIT: INCLUDED

· DUST EXTRACTOR: PINOMATIC BELLOWS DUST EXTRACTION APPARATUS

· SERVO MOTOR: YES

· NET WEIGHT: 4500 KG.

WITH OUR MACHINES THAT PROVIDE PROBLEM-FREE SOLUTIONS TO YOUR SENSITIVE PRODUCTS (CHIPBOARD, MDF,

YOU CAN PROCESS YOUR RAW MATERIALS WITH ALUMINUM, PLEXY, GOLD, SILVER ETC. WITH HIGH PERFORMANCE.)

· OUR MACHINES ARE MANUFACTURED TO WORK IN ACCORDANCE WITH OCCUPATIONAL SAFETY PRINCIPLES AND LAWS. (EMERGENCY STOP)

· PRODUCED WITH EMERGENCY STOP ON EVERY AXIS.

· YOU CAN RECEIVE ALL YOUR OVAL, ELLIPSE, RECTANGULAR AND CYLINDER WORKS IN THE MOST PRECISION SIZES WITH 1000/1 ERROR-FREE QUALITY.

· WE ARE FRIENDLY IN WELCOME TO CUSTOMERS, WE PROVIDE TIMELY TECHNICAL SUPPORT WITH OUR ARTIST TEAM IN MANUFACTURING, TRANSPORTATION, ON-SITE INSTALLATION AND WORK.

· IN ALL OF OUR MACHINES WE PRODUCE, WE ADJUST A RACK GEAR SYSTEM MM IN THE

· WE NEVER USE BOTTOM SUPPORT SHAFT AND DRIVEN SHAFT.

·

THE SMART CNC ROUTER YOU ARE USING HAS AN EASY USE, PROGRAM INFORMATION AND GUIDANCE PACKAGE.

WE INSTALL YOUR HAND CONTROL POCKET KNIFE AND SOFTWARE IN ENGLISH OR TURKISH AND DELIVERY IT TOGETHER WITH READY VECTOR DRAWINGS.

OUR PRODUCTS ARE REGISTERED DOMESTIC.
