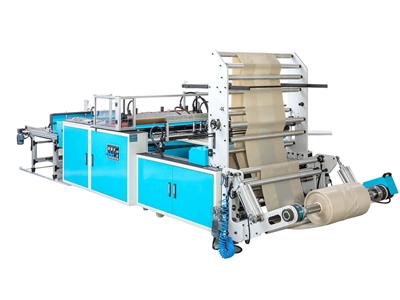

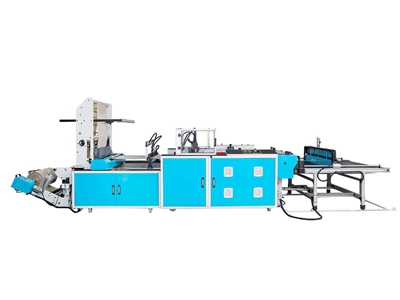

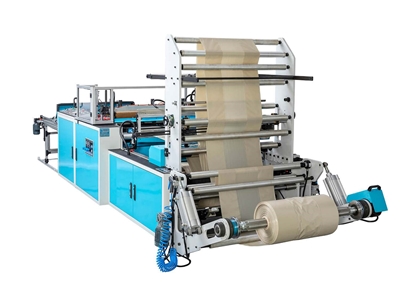

200-1000Mm Side Cutting Machine
| İlan No: | #00233824 |
| Kategori: | Poşet Kesim Makinası |
| Marka: | Gürçelik PKS |
| Model Tipi: | Arctic 1000S UNS |
| Ürün Tipi: | Satılık |
| Ürün Durumu: | Sıfır |
| Menşei: | Türkiye |
| Teslim Durumu: | Stokta Var |
| Konum: | Sultanorhan Mah. / Gebze / Kocaeli |
| Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur
Gürçelik Poşet Kesim Makinaları
Gürçelik Makina End. Otomasyon Sist. San. Ve Tic.A.Ş.
Arctic 1000S- UNS
200-1000mm Side Cutting Machine
Servo motor and inverter system
Control screen (Temperature, production quantity, machine speed, etc. can be monitored)
Automatic tilting jaw
Bag size can be changed.
Thanks to the photocell, printed and unprinted bags are produced.
When the photocell does not see the printing, the machine stops automatically when the roll runs out; An error message appears on the operator panel.
The bobbin lifting group provides more practical loading of bobbins with its locking wheel.
The brake system is automatically adjusted according to the loaded kilograms.
With motor, reducer, inverter and pneumatic ballerina system,
Optionally, hole drilling and ultrasonic welding unit, additional welding and envelope apparatus are added.
A retarding belt system is used in the machine.
Bottom stitched chin system
dual coil attachment system
Rotating silicone in the lower jaw
synchronous rollers
taping apparatus
Double welding (Athlete Bag cutting capability) is available.
Belt motor speed is adjusted by inverter.
Arctic 1000S- UNS Technical Specifications
|
MODEL |
|
ARCTIC 1000-S UNIVERSAL |
|
Bag Width |
mm |
200-1000 |
|
Bag Length |
mm |
100-1000 |
|
Film Thickness |
mm |
0,025-0,100 |
|
production speed |
(pcs/mir) |
250 |
|
Movie Length |
(m/min) |
50 |
|
Total Air Consumption |
Oitedmin) |
150 |
|
Total Power Consumption |
(kW) |
10 |
