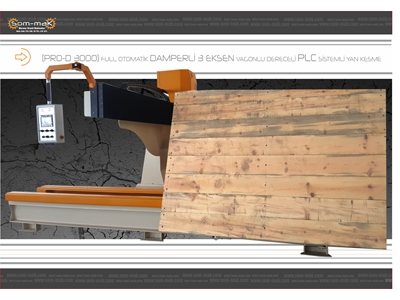

3 Axis Dump Marble Side Cutting Machine
| İlan No: | #00224509 |
| Kategori: | Mermer Yan Kesme Makinası |
| Marka: | Som-mak |
| Model Tipi: | PRO-D 3000 |
| Ürün Tipi: | Satılık |
| Ürün Durumu: | Sıfır |
| Menşei: | Türkiye |
| Teslim Durumu: | Stokta Var |
| Konum: | / Orhangazi / Bursa |
| Kısa Detay: | 1 Yıl Garantili |
| Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur
Som-mak Makina
Som-mak Mermer Granit Makinaları Mad. San. İth. İhr. Ve Tic. Ltd. Şti.

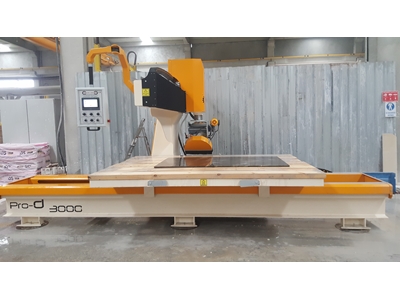

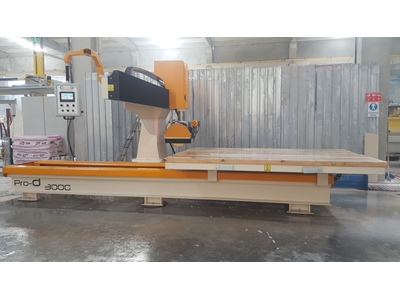

Som-mak PRO-D 3000
3 Axis Dump Marble Side Cutting Machine
|
* Side Cutting (x) course 3450 mm. * Saw Diameter 35mm. * Saw engine 13 / Kw 1500/3000 min. * Wagon movement / automatic * Wagon dimensions are 3300 x 1950 mm. * Up and down motor 0.75 kv * Forward and reverse motor 0.75 kv * Water Flow 8 Lt./Min Required. * Touch Screen (PLC is system * Side cut / Head cut Simultaneously Size written |
* Rotation angle 0 - 90 degrees Auto / Beheading * 90 Degree angle 0 - 90 degree rotating Auto * Machine length - 6000 mm. * Machine width 2500 mm. * Machine Rock 2600 mm. * Approximate weight - 3500 kg. * Total Power 15 KW * Beheading (H) Cutting Course 1600 mm * Side cut (x) Cutting Course 1800 mm |

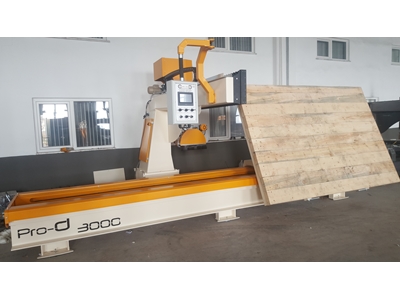

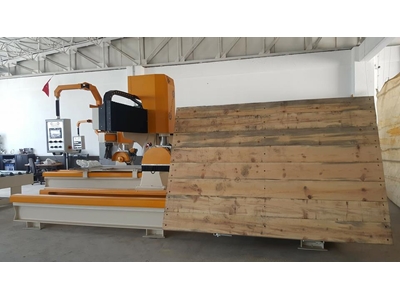

* Tipper hydraulic tilting 80 degrees * Head Cutting (x) course 1900 mm.
The machine, which is mounted on a steel chassis, has a closed and oil chamber rail system with LINER Sled Kremier Transfer. The speed control and the dimensions given with the desired cut make precise cuts.
( AUTOMATIC ) The system is put into the automatic mode, the hive goes down manually, the wagon moves automatically, the stone starts to cut, the wagon comes to the top of the wagon, it waits.
( SEMI- AUTOMATIC ) Entering the Sizing Values on the Screen The System is Taken to the Sizing Mode, the Stone's Dimensions are Entered. The Hive Automatically Goes Down. The Wagon Moves Automatically. The Stone Begins to Cut. When the Wagon Comes Out of the Stone, the Hive Comes Up Automatically. When you complete the pieces, BiteR
( XY FULLY AUTOMATIC ) The Screen is taken to Fully Automatic Mode. XY Values are entered. The system writes the lengths, quantities and dimensions of the part to be cut, the hive automatically descends, the wagon moves automatically, the stone begins to cut, when the wagon comes out of the bowl, the hive automatically rises, the wagon comes to the top, the tower slide counts, and The Hive Descends Again and the Cutting (When X AXIS is Finished, the System Automatically Turns Its Head (Y) MINUS) It Starts Sizing. In this way, it continues until the plate is finished without touching the hand.
All Steel is Used on the Side Cutting Machine with Wagon, Anti-corrosion Epoxy Paint Reinforcement, Special Transmission Rail System Closed Slideway is Purified from Water, LINER RAIL, Protective Bellows System is Integrated.
Our Machine Cuts 90 degrees and 45 degrees Reducer Works Automatically
Flat Water Motor is Used on Our Machine. Head Cut Up and Down Inner Barrel System Compare With Bridge Cutting Machines. Special Materials are Used to Provide Precise Cutting and It Acts as a Slippery Coupling.
Our Side Cutting Machine with Wagon is designed as both Cutting Sizing and Side Sizing, XY Sizing with Full Measurement System.
Head rotation circular movement (C axis) of our machine is AUTOMATIC
Our machine is AUTOMATIC with 45 degree movement with reducer.
Our Machine Sliding Movement (Y axis) is AUTOMATIC / Manual
Our machine is WAGON Movement (X axis) AUTOMATIC / Manual
Both Manual, Automatic, Semi-Automatic .Full Automatic, Available.
The Head System is fixed at 45 degrees by cutting from 0 to 90 degrees
It provides automatic cutting with speed control with the help of reducer.
