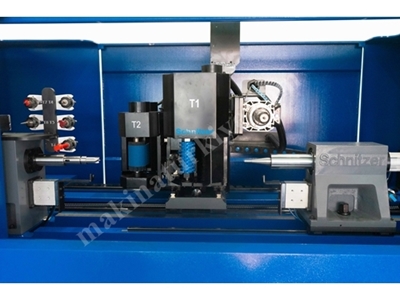

4 Axis 4 Unit Cnc Wood Lathe Machine With Oscillation Sanding Unit

‹ ›

Fiyat Sorunuz

Min. Sipariş 1 Adet

Satıcıyla iletişim kur

Schnitzer Makina

Schnitzer Makina CNC Ahşap Torna Makinaları Ltd. Şti.

Danışman : Umut İ.

+90 532 288 44 16

Şifre

Schnitzer Nero

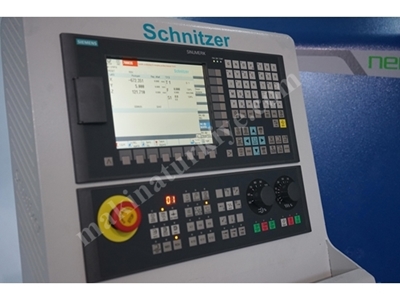

Control Unit: Siemens 808D (Made İn Germany)
Max Square: 160 X 160 mm
Min Square 20mm x 20 mm
Min Length : 30 mm
Max Length : 1200 mm
Motion Model: X-Y-Z-A Axis
X Motor: 1,50 KW SERVO MOTOR 1 PC ABSOLUDE ENCODER SERVO MOTOR
Y Motor: 0,75 KW SERVO MOTOR 1 PC ABSOLUDE ENCODER SERVO MOTOR
Z Motor: 1 KW SERVO MOTOR 1 PC ABSOLUDE ENCODER SERVO MOTOR
A Motor: 3.7 KW – 6000 RPM/M ABSOLUDE ENCODER SPINDLE MOTOR 1 PC
ABSOLUD ENCODER (NO REFERENCE REQUIRED)
Electro Magnetic Brake System Air Colling
CUTTING DIRECTION: DOUBLE DIRECTION CUT
Long Axis Speed : 90 m/min
Short Axis Speed : 40m /min
Y Axis Speed : 30 m /min
Working Power 22 kW
Ball Screw 40 x 40 mm
Absolud Encoder Servo Motor (SIEMENS)
Clambing System is Pneumatic (FESTO)
CMSA Linear Movement System
All The Drives From SIEMENS (Made in Germany)
All The Cablo From SIEMENS (Made in Germany)
Fuse SIEMENS (Made in Germany)
Bearing (SKF Made in Italy,FAG Made in Germany)
Contactor (SCHNEIDER Made in Germany)
Automatic Lubrication Every 200 min(During 15 sec)
Handwheel

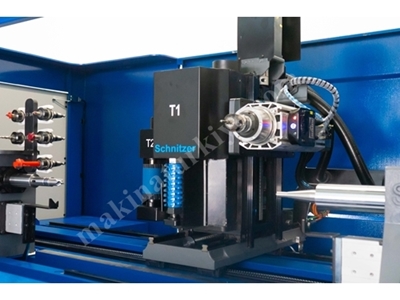

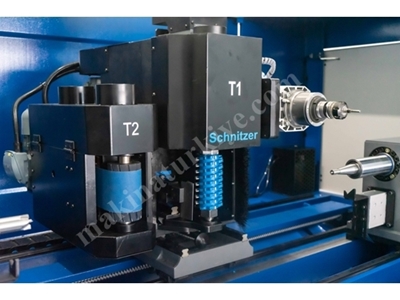

1.Unit: Debarker Turret (7.5 KW Motor)
2 Unit : V Knife Tool

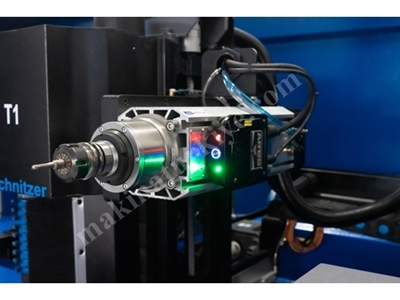

3. Unit :AREL MILLING 18000 rpm/m 4 KW SPİNDLE MOTOR (1 PC) 4.Unit: Sanding Unit
Able to work 24 Hours
