4 Axis Cnc Bridge Cutting Machine

 PRO VISION / OUR NEW MODEL IS UPDATING, SO YOU CAN REVIEW OUR 2023 MODEL BRIDGE MARBLE PLATE CUTTING MODEL WITH 4 - 5 AND 4+1 MILLING OPTIONS ON OUR PAGE.

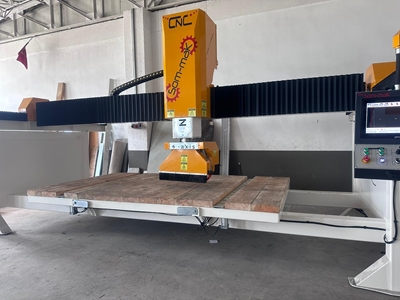

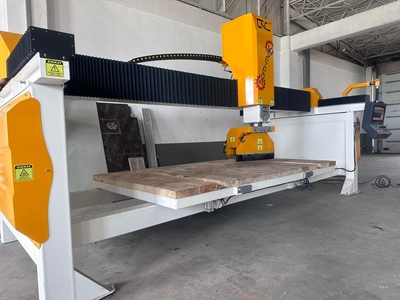

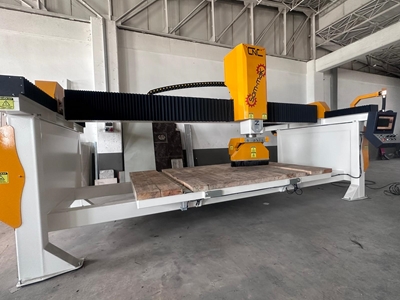

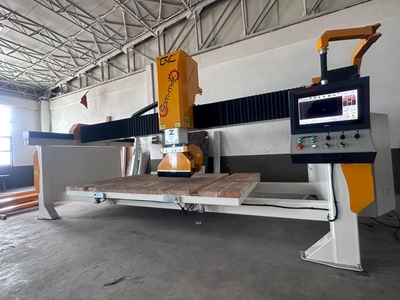

4 axis CNC Bridge Cutting Machine  Circular cut, Cross Cut, 45 degree Angled cut on rich balcony marble, Sink Cut and profile scanning. 5 axis and 4+1 options are optionally available.

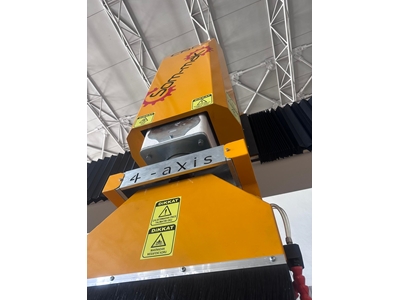

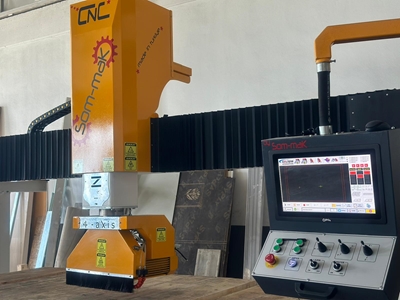

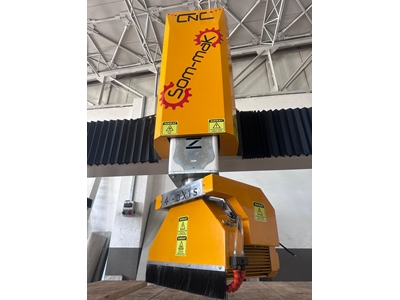

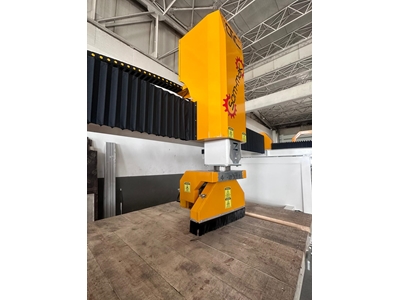

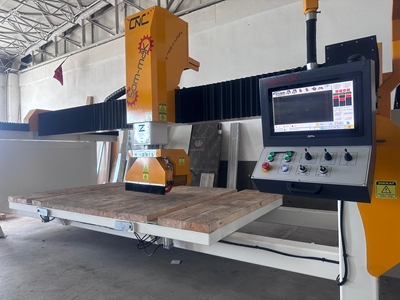

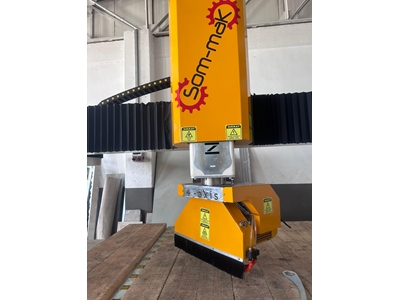

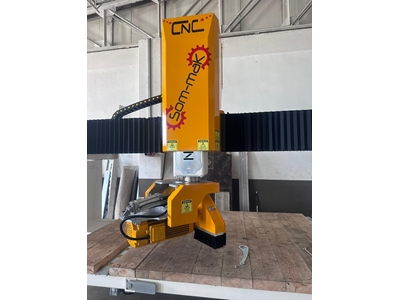

4 axis CNC Marble Bridge Cutting Machine All axes of this machine are controlled by servo motor. Servo motors are also coupled to backlashless servo reducers. Thus, a 0.1mm cut was not made. Using linear slides as slides, spindle-axis drive operation; It is made with precision, hardened, ground rack and pinion gears. The machine control system is CNC-based and complex structures achieved G-codes obtained by CAD-CAM. In this type of machines, since the cutting angles are provided by the rotary head, it is very easy to obtain the specified cutting dimensions.
