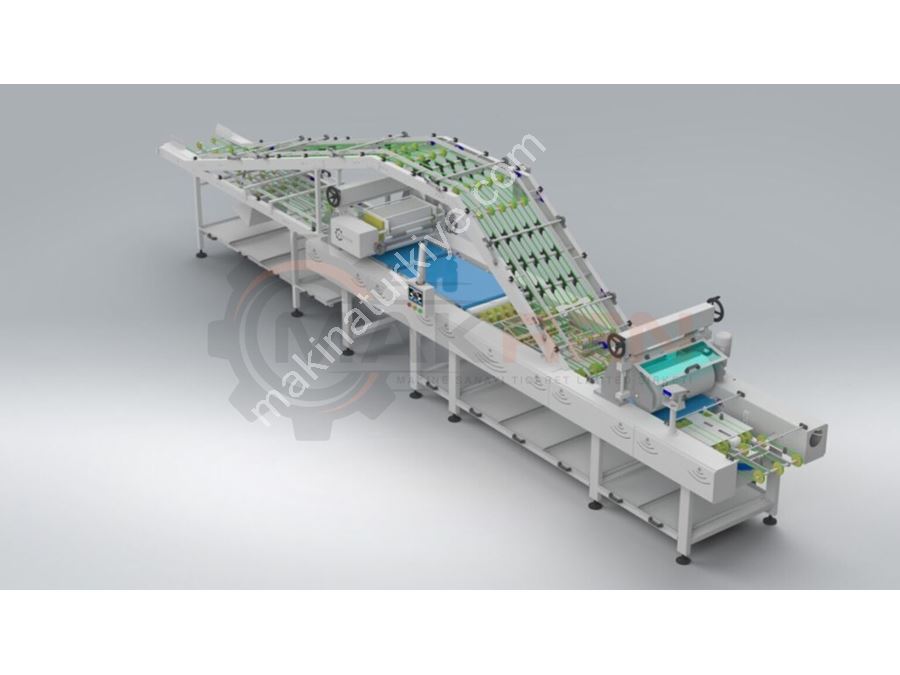

40 Sheets / Minute (9Kw) Wafer Cream Spreading Machine

40 Sheets / Minute (9kW) Wafer Cream Spreading Machine

The Makren 40 Sheets / Minute Wafer Cream Spreading Machine is a high-efficiency machine that enhances industrial wafer production processes, providing high-capacity output. It applies liquid or aerated cream on the wafer sheets coming from the cooling section, creating blocks with 11 layers, with 1 layer of cream between 2 sheets and up to 5 layers of cream between a maximum of 6 sheets. The cream can be applied in a single or double color.

Features and Operation

• Cream Application: Cream is applied evenly on the wafer sheet with the help of scraper blades on a rotating drum.

• Recirculation System: Excess cream on the belt is transferred to a stainless steel recirculation trolley and is pumped back into the cream reservoir for reuse.

• Cylinder Pressing: The stacked wafer blocks are pressed with adjustable cylinders to evenly spread the cream between the layers.

• Weight Control: After pressing, an optional block weighing unit allows for easy weight adjustments through the control panel.

• Nut Sprinkling Unit: A nut sprinkling unit can be added optionally to diversify the product.

Technical Details:

• Capacity: 40 sheets/minute

• Energy Consumption: 9 kW (single head)

• Wafer Sizes: Suitable for wafers ranging from 290 x 470 mm to 350 x 500 mm.

• Stainless Steel Construction: The entire machine is made from stainless steel, ensuring hygienic and durable use.

• Recirculation Trolley: Used for excess cream recycling, with an energy consumption of 6 kW.

Additional Features:

• Block Weighing Unit: Weight adjustments can be easily made and monitored via the control panel.

• Nut Sprinkling Group: Can be added for variety, allowing for nut sprinkling during production.

• Adjustable Coefficient: The coefficients of the plates are automatically adjusted, increasing production efficiency.

• Second Spreading Head: A second spreading head can be added for applying cream in different colors or flavors.

Wafer Sizes:

• Adjustable for wafers between 290 x 470 mm and 350 x 500 mm, with adjustable conveyors and belts.

Specifications:

• Single Head Cream Spreading: 40 sheets/min, Energy consumption: 9 kW

• Double Head Cream Spreading: 40 sheets/min, Energy consumption: 12 kW

• Double Head Cream Spreading with Nuts: 40 sheets/min, Energy consumption: 12 kW

• Recirculation Trolley: Energy consumption: 6 kW

• Material: Fully made of stainless steel.

The Makren 40 Sheets / Minute Wafer Cream Spreading Machine is ideal for businesses looking to increase speed and quality in wafer production lines. With its stainless steel structure and functional features, it guarantees food safety and quality.

Payment Terms in Turkey: 50% prepayment, 50% after shipment.
