40 Sheets / Minute Double-Head Wafer Cream Application Machine

40 Sheets / Minute Double-Head Wafer Cream Application Machine

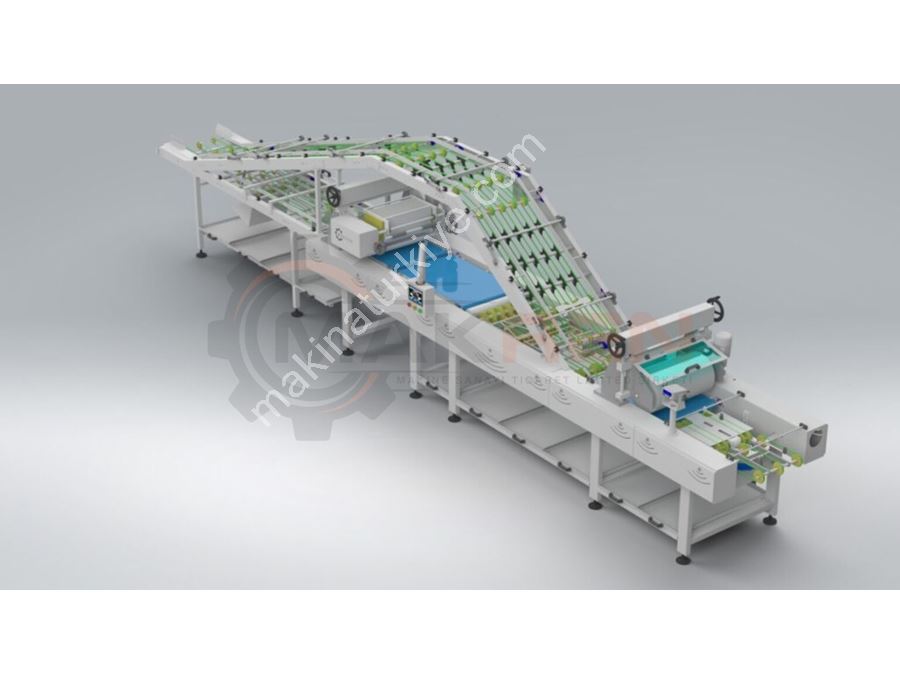

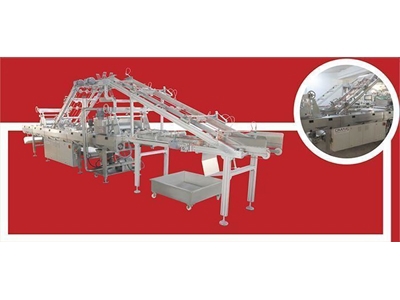

Makren 40 Sheets / Minute Double-Head Wafer Cream Application Machine is an advanced technology solution that provides speed and efficiency in wafer production. It applies liquid or aerated cream onto the wafer sheets coming from the cooling process, forming blocks. The machine begins by applying one layer of cream between two wafer sheets, and then up to five layers of cream between a maximum of six sheets, resulting in 11-layered wafer blocks.

Machine Operation
Cream is deposited onto a rotating drum, and with the help of scraper blades, it is spread over the wafer sheet moving on the conveyor belt. Excess cream remaining on the belt is collected into a stainless steel cream recirculation trolley and pumped back into the cream reservoir. The layered blocks are then evenly pressed and spread with cream between the wafers by adjustable cylinders. Additionally, a hazelnut sprinkling group can be added, and a second application head can be used to apply cream of different colors or flavors.

• Wafer Sheets from Cooling: Liquid or aerated cream is applied to the wafer sheets coming from the cooling line, forming blocks.

• Cream Layers: One layer of cream is applied between two sheets to start the block formation. A maximum of five layers of cream can be applied between six sheets, resulting in a total of 11 layers in the block. The block formation is done using a pneumatic system.

• Cream Application: Cream can be applied in single or double colors.

• Excess Cream Recycling: Excess cream remaining on the conveyor belt is collected into a stainless steel recirculation trolley and pumped back into the cream tank for reuse.

• Layer Pressing: The layered blocks are pressed using adjustable cylinders to evenly spread the cream between the wafers.

• Optional Nut Sprinkling Group: A hazelnut sprinkling group can be added to the machine.

• Optional Second Cream Head: A second head can be added for applying cream of different colors or flavors.

• Weight Control Unit: After the layer system, the machine optionally includes a block weighing unit for precise weight control.

• Wafer Size Adjustment: Conveyor tracks and belts can be adjusted to fit wafer sizes ranging from 290 x 470 mm to 350 x 500 mm.

Machine Specifications:

• Cream Application Single Head: 40 sheets/minute, Energy Consumption: 9 kW

• Cream Application Double Head: 40 sheets/minute, Energy Consumption: 12 kW

• Cream Application Double Head with Hazelnut Sprinkling: 40 sheets/minute, Energy Consumption: 12 kW

• Cream Recirculation Trolley: Energy Consumption: 6 kW

• Material: Made entirely from stainless steel

• Adjustable Layers: Suitable for applying a minimum of 2 and a maximum of 5 layers of cream.

• Automatic Adjustment: The machine automatically adjusts the layer count and is equipped with a control panel for easy monitoring.

Efficiency and Productivity
This machine optimizes wafer production by applying cream quickly and efficiently while ensuring that the layers are evenly distributed. The adjustable conveyor belts and tracks make it adaptable to various wafer sizes, improving flexibility and speeding up the production process. The machine's efficient cream recirculation system helps reduce waste and operational costs.

Hygiene and Durability
The entire machine is made of stainless steel, ensuring hygienic production conditions and durability. The robust design guarantees long-lasting performance with minimal maintenance.

The Makren 40 Sheets / Minute Double-Head Wafer Cream Application Machine is ideal for businesses looking to increase the speed, quality, and efficiency of their wafer production. With options for multiple cream colors and flavors, as well as added features such as nut sprinkling and weight control, this machine offers versatility and precision in the production process.

Payment Method in Turkey: 50% advance payment, 50% after loading.
