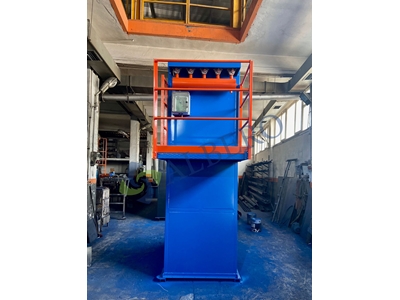

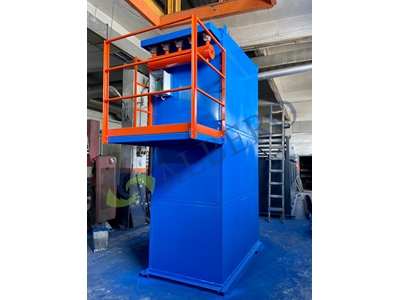

8000 M3/Hour 45 Bag Jet Pulse Filter

8000 M3/Hour 45 Bag Jet Pulse Filter

Albero 8000 is a high-performance 45 Bag Jet Pulse Ventilation Filter designed to efficiently handle large volumes of dust-laden gases in demanding industrial environments. With a filtration capacity of 8000 m³/hour, it is specifically engineered for heavy-duty applications in industries such as cement manufacturing, mining, metal processing, woodworking, and chemical plants, where large amounts of airborne particles and contaminants need to be removed to maintain a safe and clean working environment.

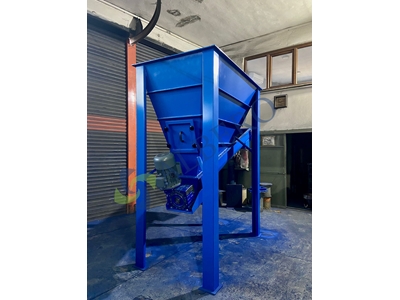

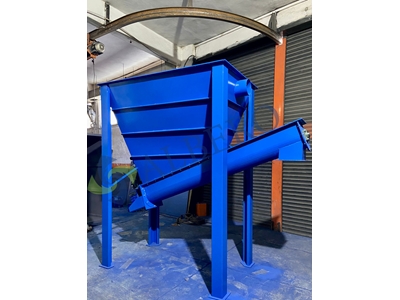

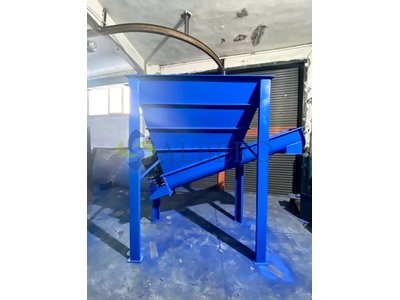

The operation of the Albero 8000 filter is based on a highly effective filtration process. Contaminated air and gases are drawn into the system via a suction pipe under high pressure. Once inside the system, the air is directed towards the bunker, where the flow speed is reduced using a specially designed reflector. This reduction in speed allows the heavier particles to settle at the bottom of the bunker, preventing them from reaching the filter bags. The remaining lighter dust particles are captured on the outer surfaces of the filter bags, where the primary filtration process takes place.

To maintain the efficiency of the Albero 8000, the filter bags are periodically cleaned using an advanced pulse cleaning system. Pulse valves, controlled by an electronic timer, release bursts of compressed air at a pressure of 6-7 bar to dislodge the accumulated dust from the filter bags. This pulse action ensures that the bags remain clean and functional, preventing clogging and maintaining the system's performance over time. The cleaning process is fully automated, reducing the need for manual intervention and minimizing downtime.

After the filtration process, the cleaned air passes through the system and is extracted by a fan, which expels it either into the atmosphere or into a controlled exhaust system, ensuring that only purified air leaves the system. This not only improves air quality but also ensures compliance with environmental regulations related to airborne pollutants and dust emissions.

A notable advantage of the Albero 8000 is its ability to efficiently separate and collect both usable materials and waste. The high-pressure pulse cleaning ensures that heavier particles, which can be collected and reused, fall into the bottom bunker. Lighter, unusable particles are carried away as waste, allowing the system to maintain high levels of efficiency while minimizing material loss and operational costs.

Designed for high-capacity applications, the Albero 8000 provides effective dust control even in environments with heavy dust loads. Its robust construction and advanced features ensure that it can handle even the toughest filtration tasks, making it ideal for industries where large volumes of particulate matter are generated. The system is built from high-quality materials, offering durability and resistance to wear and tear, even in harsh working conditions.

The Albero 8000 is also highly customizable to meet the specific needs of various industries. Its modular design allows for adjustments in airflow capacity, filter bag size, and pulse cleaning frequency, providing flexibility for different applications and operational requirements. Additionally, the user-friendly design allows for easy maintenance and long-term reliability, minimizing the need for frequent repairs or replacements.

In summary, the Albero 8000 45 Bag Jet Pulse Filter is an advanced and reliable filtration system that offers high capacity, effective dust control, and low maintenance. Its ability to handle large volumes of contaminated air, combined with its pulse cleaning technology and efficient dust collection, makes it an essential tool for industries requiring superior air quality and workplace safety. Whether used in industrial dust extraction, air filtration, or ventilation systems, the Albero 8000 ensures optimal performance and compliance with industry standards.
