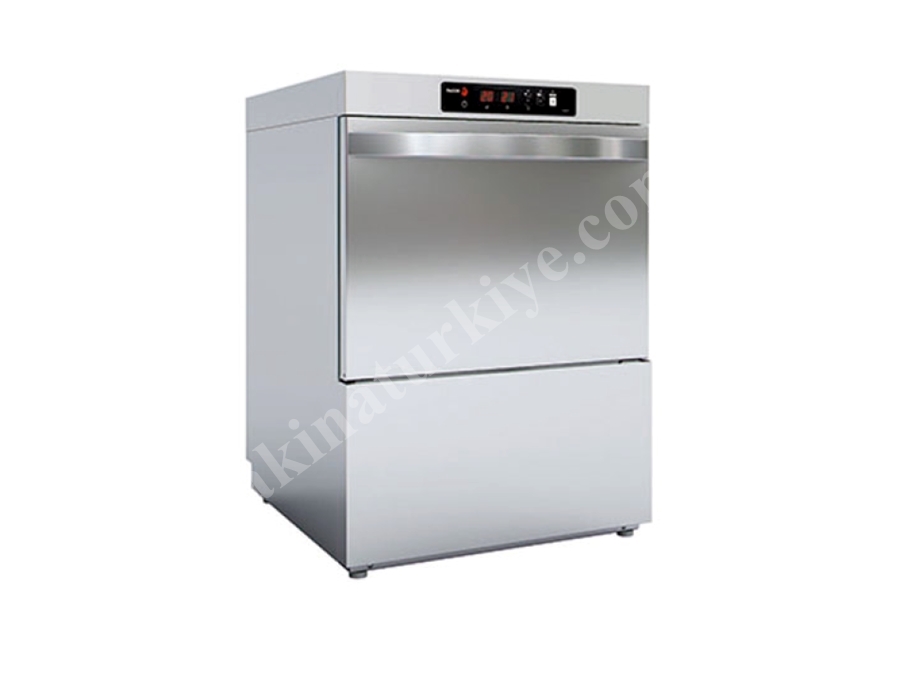

COP-504 Set Altı Bulaşık Makinası

DENOMINATION:

Front loading dishwasher with electronic control and rinse pump

DESCRIPTION :

- Front-loading dishwashers - EVO Generation.

- Constructed in stainless steel.

- Whole body with double wall.

- Counterbalanced door with stainless steel hinges and double spring.

- Furniture which allows the machine to be positioned under 850 mm high

work surfaces.

- Double rotating wash and rinse system, top and bottom, in stainless

steel.

- Rounded tank to facilitate washing and drainage.

- Stainless steel armoured heating elements in the wash tank and rinse

boiler.

- Useful internal height of 380 mm. Accepts GN 1/1 trays.

- Thermostatic control of temperatures (wash, 60°C, and rinse, 85°C).

- 600 W wash pump with SOFT-START.

- Boiler with capacity of 7 litres.

- Water consumption per 2.4 litre cycle.

- Rinse aid doser incorporated.

- Magnetic safety stop switch in door opening.

- Safety thermostat

- Model for 500 x 500 mm baskets.

- Model with electronic control and display of temperature, functions

and errors.

- Electronic programmer with help system for technical service.

- Rinse pump which guarantees a perfect hygiene result with complete

linear rinse cycle at 85°C. (EFFIRINSE) de acuerdo con las espe

cificaciones de seguridad e higiene de la norma DIN10512.

- Air Brake check valve system type AA according to EN 1717/WRAS.

- 90s, 120s y 180s wash cycles.

- Theoretical maximum production of 40 baskets/hour.

- Tank with volume of 20 litres, with 2.8 kW heating element.

- Boiler with 5.6 kW heating element.

- Single-phase Multipower installation, with heating in the boiler which

can be selected at time of installation, either 2,8 / 3,7 kW.

- Multi-voltage: Allows the machine to be connected to a single-phase or

three-phase voltage network. (230 1N~/230 3~/400V 3N~).

Double system of filter trays in the tank.

- IPX4 anti-humidity protection.

- Built-in rinse booster pump - power 150 W

POSSIBLE OPTIONS :

- Electric trasformation to marine version (440V 3~ 60 Hz.)

POSSIBLE ACCESSORIES :

- STANDS

- VARIOUS KITS

- BASKETS FOR DISHWASHERS

- BASKETS FOR GLASSES

- WATER SOFTENERS

- REVERSE OSMOSIS

DIMENSIONS

X Width 600 mm X Gross width 660 mm

Y Depth 600 mm Y Gross depth 745 mm

Z Height 830 mm Z Gross height 1030 mm

Net Weight 68,0 kg Gross Weight 80,0 kg

Net volume 0,299 m3 Gross volume 0,506 m3

ELECTRICITY TECHNICAL SPECIFICATIONS

Engine power 0,60 kW

Electric power 3,400 kW

Amperage (A) 14,7 A

Heating power 2,80 kW

Voltage 220-240V - 1N

Electric frequency 50Hz

WATER TECHNICAL SPECIFICATIONS

Pressure H2O: 200-400kPa(2-4bar)

Water max consumption 54,00 L/h

CONNECTIONS TECHNICAL SPECIFICATIONS

230 V three-phase wiring 3 X 2,5 + T - 20A

Single-phase 230V wiring 2X4 + T - 32A

Three-phase +N 400V wiring 4X1,5 + T - 16A

Drain 1 diameter 30-25 MM

OTHERS

Noise level 65,00 dB
