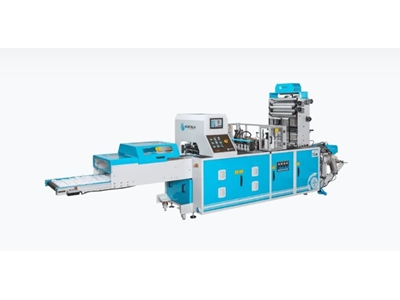

Double Line Block Cutting Machine

Atlas 600-B 2LD
Block Cutting Machine (Double Line)

Servo motor and inverter system

Control screen (Temperature, production quantity, machine speed, etc. can be monitored)

Automatic tilting jaw

Bag size can be changed.

Thanks to the photocell, printed and unprinted bags are produced.

When the photocell does not see the printing, the machine stops automatically when the roll runs out; An error message appears on the operator panel.

The bobbin lifting group provides more practical loading of bobbins with its locking wheel.

The brake system is automatically adjusted according to the loaded kilograms.

With motor, reducer, inverter and pneumatic ballerina system,

Optionally, hole drilling and ultrasonic welding unit, additional welding and envelope apparatus are added.

A retarding belt system is used in the machine.

Bottom stitched chin system

Dual coil attachment system

Rotating silicone in the lower jaw

synchronous roller

taping apparatus

Double welding (Athlete Bag cutting capability) is available.

Belt motor speed is adjusted by inverter.



Atlas 600-B 2LD Technical Specifications
