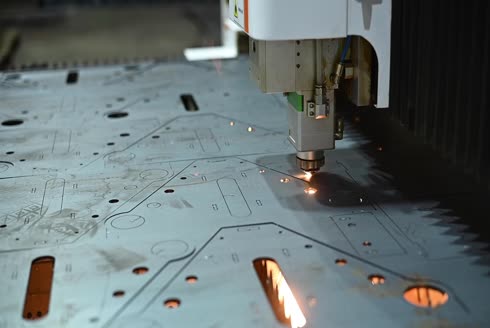

Ekonomik Fiber Lazer Kesim Tezgahı
Fiber Lazer Kesim Tezgahı-EKO 1000
Satılık-Sıfır - Yeni
Rollingpres
Ekonomik Fiber Lazer Kesim Makinası
| TECHNICAL PARAMETERS (FALCON) |
|
Loading Capacity |
400 kg |
| Cutting Area |
1500×3000 mm |
|
Power Demand |
380V/50Hz |
| Cutting Speed |
5-30 Mt/min (up to materials) |
|
Dimensions (WxLxH) |
2650x4550x2010 mm |
| Max. Movement Speed |
80m/min. |
|
Output Power |
1kW |
| Control Software |
Empower / Weihong Laser Controller |
|
Place of Origin |
Made in Turkey |
| Laser Source |
Raycus |
|
Waranty |
2 Years |
| Cooling Mode |
Water Cooling |
|
Certification |
CE, ISO, SGS, FDA |
| Positional Accuracy |
±0.03 mm |
|
Graphic Format Supported |
AI, BMP, DST, DWG, DXF, LAS, PLT |
| Repeatability |
±0.05 mm |
|
Used Gases |
Air, Oxygen, Nitrogen |
| Weighthing |
2.000 kg |
|
Servo Motors |
yaskawa |
| Laser Head |
Raytools manuel focus |
