Full Electronic Sock Toe Closing And Sewing Machine
Fiyat Sorunuz
Min. Sipariş 1
Adet
İlan No: | #00228720 |
Kategori: | Çorap Burnu Dikiş Makinası |
Marka: | Complett |
Model Tipi: | 232 Digimax |
Ürün Tipi: | Satılık |
Ürün Durumu: | Sıfır |
Menşei: | Türkiye |
Teslim Durumu: | Stokta Var |
Konum: | Terazidere Mah. / Bayrampaşa / İstanbul |
Kısa Detay: | 2 Yıl Garantili |
Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur
Danışman : Ahmet U.

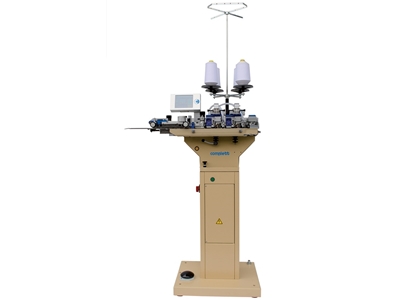

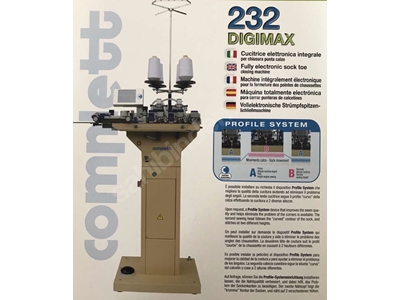

Complett 232 Digimax
Full Electronic Sock Toe Closing and Sewing Machine
- A new concept machine utilizing "ALU-SPEED" technology: new Complett patent regarding the movements of the sewing heads. Less friction, balanced and reduced moving masses and excellent lubrication enable a higher speed to be achieved. There is almost no wear on the components.
- An innovative study on the reduction in overall size and weight, leading to the combination of maximum compactness (new Complett patent) and the highest quality materials used in the manufacture of the machine.
- Very low noise level: 70 decibels, equivalent to the noise heard in an office.
- The balanced movement of the "conveyor-transport" and perfect seam formation at any speed ensure great accuracy in sock toe sewing
- The absence of vibration, noise-free operation and very low power consumption of 140 watts (equivalent to the consumption of a domestic light bulb), combined with high speed and sewing quality, make the machine model 232 an ideal workplace in terms of performance. , productivity and ergonomics are at stake
- Standard speed 4,000 RPM

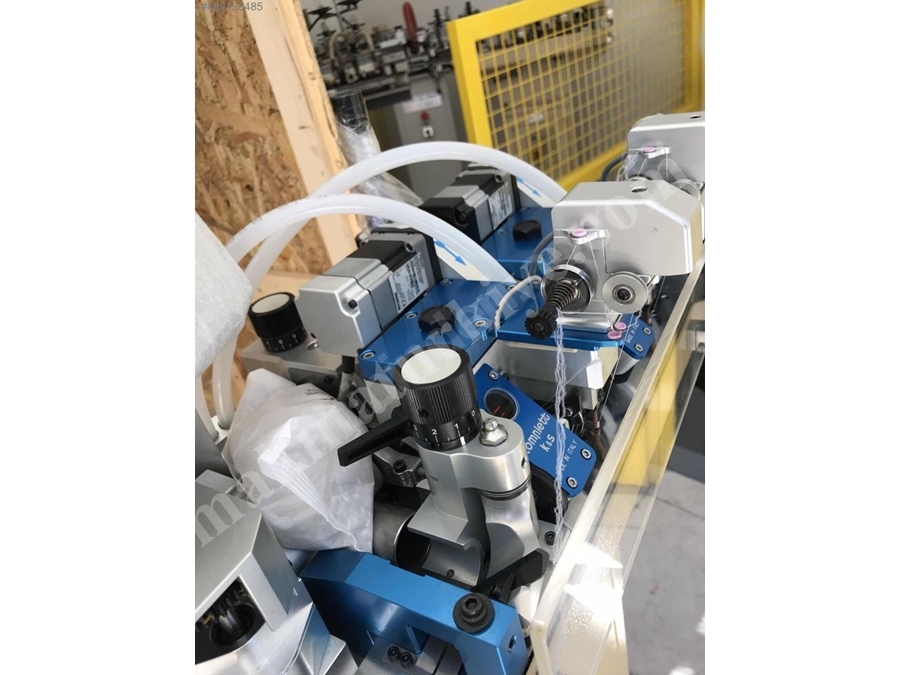

- Four electronic independent motors control both the sewing heads and the conveyor and transport. This provides maximum flexibility in settings, eliminating the need for mechanical intervention.
- Microprocessor with touch screen controls:
- Reading and speed change of first and second sewing heads
- Alarms with micro switches
- Number of stitches per inch of first and second sewing heads
- electronic selection of transport speed
- electronic selection of conveyor speed
- Multifunctional sock counter includes:
four-shift sock counter
pre-selectable sock counter
protection device
main sock counter with "production per minute" display
- "DIGI" integrated control system. Panel board allows to control both the machine and the sock turner STEP 2
- 232 DIGIMAX is ready to be connected to the sock converter (on request) with integrated electronic control STEP 2
- The 232 DIGIMAX is ready to be equipped with the following devices (on request):
- EAS (ELECTRONIC ADJUSTMENT SYSTEM) allows memorization and duplication with maximum ease:
opening the knives
adjusting the height of the conveyor
adjusting the knife height of the sewing heads - PROFILE SYSTEM (FULLY PATENTED), which improves sewing quality and helps eliminate corner problems. The second sewing head follows the "curved" contour of the sock and sews at two different heights.
- EAS (ELECTRONIC ADJUSTMENT SYSTEM) allows memorization and duplication with maximum ease:
