S+S Regeltechnik KCO2-SD Duct CO2 Sensors And Measuring Transducers

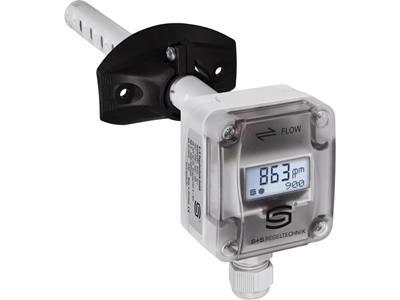

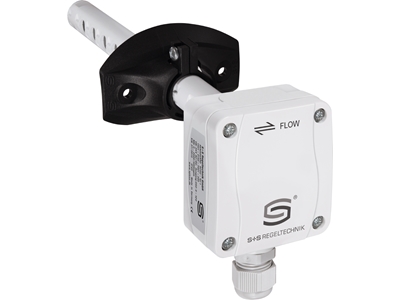

Maintenance-free duct sensor AERASGARD KCO2-SD with active output, automatic calibration (fixed), in a compact plastic housing with quick-locking screws, for determining the CO2 content of the air (0…2000 ppm/0...5000 ppm). The measuring transducer converts the measured values into a standard signal of 0 -10 V. Maintenance-free duct sensor AERASGARD KCO2-W with active/switching output, automatic calibration (can be deactivated), in a compact plastic housing with quick-locking screws, optionally with/without display, for determining the CO2 content of the air (0…2000 ppm/0...5000 ppm). The measuring transducer converts the measured values into a standard signal of 0 -10 V or 4...20 mA (switchable). The CO2 sensor is used in offices, hotels, convention centres, apartments, shops, etc. for the purpose of evaluating the indoor climate. This enables energy-saving room ventilation on an as-needed basis, thereby reducing operating costs and improving well-being. One sensor for every 30 m² of room area is recommended. The CO2 measurement is performed using an optical NDIR sensor (non-dispersive infra-red technology). The detection range is calibrated for standard applications such as monitoring residential rooms and conference rooms.

Technical Data:

Power Supply:

Voltage: 24 V AC ⁄ DC (± 10 %)
Power Consumption: < 1.5 W ⁄ 24 V DC typical; < 2.9 VA ⁄ 24 V AC typical; Peak current: 200 mA

Sensor:

Type: Optical NDIR sensor (non-dispersive infra-red technology)
Calibration: Manual calibration via zero button for KCO2 - SD; Automatic calibration (fixed) for KCO2 - SD; Automatic calibration (deactivatable via DIP switches) for KCO2 - W

Measuring Range:

Multi-range switching (selectable via DIP switches):
- 0...2000 ppm
- 0...5000 ppm

Output:

KCO2 - SD: 0 -10 V (fixed)
KCO2 - W: 0 -10 V or 4...20 mA (selectable via DIP switches), working resistance < 800 Ω
Offset Potentiometer: ± 10 % of the measuring range

Relay Output:

KCO2 - SD: Without changeover contact
KCO2 - W: With potential-free changeover contact (24 V / 1 A), switchpoint adjustable

Measuring Accuracy: Typically ± 30 ppm ± 3 % of measured value

Temperature Dependence: ± 5 ppm per °C or ± 0.5 % of measured value per °C (whichever is higher)

Pressure Dependence: ± 0.13 % per mm Hg

Long-term Stability: < 2 % in 15 years

Gas Exchange: By diffusion

Warm-up Time: Approx. 1 hour

Ambient Temperature: –10...+60 °C

Response Time: Approx. 1 minute, minimum flow rate 0.3 m / s (air)

Electrical Connection: 0.14 - 1.5 mm2, via screw terminals

Housing:

Material: Plastic, UV-resistant, polyamide (30 % glass-globe reinforced)
Color: Traffic white (similar to RAL 9016)

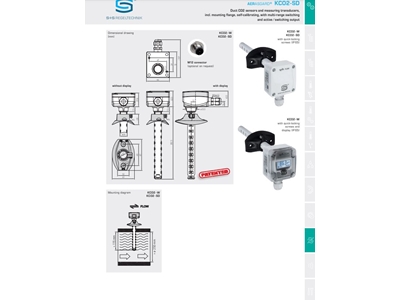

Housing Dimensions:
- Tyr 1 without display: 72 x 64 x 37.8 mm
- Tyr 1 with display: 72 x 64 x 43.3 mm
Housing Cover: Transparent

Cable Connection: Cable gland, plastic (M 16 x 1.5; with strain relief, exchangeable, max. inner diameter 10.4 mm) or M12 connector according to DIN EN 61(optional on request)

Protective Tube: PLEUROFORMTM, polyamide (PA6), with torsion protection, Ø 20 mm, NL = 202.5 mm (optionally 100 mm), vmax = 30 m/s (air)

Process Connection: Via flange made of plastic (included in scope of delivery)

Protection Class: III (according to EN 60 730)

Protection Type: IP 65 (according to EN 60 529) - Housing tested, TÜV SÜD, Report No[ PHONE HIDDEN ] (Tyr 1) - Housing in the built-in state (permeable PLEUROFORM: IP 30)

Standards: CE conformity, electromagnetic compatibility according to EN 61 326, EMC Directive 2014 ⁄ 30 ⁄ EU

Optional: Display with illumination, two-line, cutout approx. 36 x15 mm (W x H), for displaying the Actual CO2 content and for setting the switchpoint
