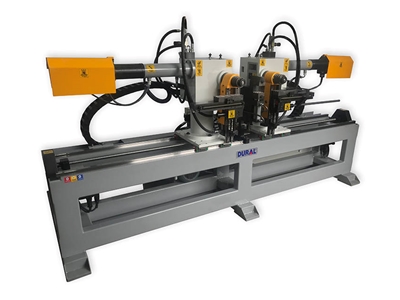

Ø38x2 Automatic Double Head Tube Bending Machine
İlan No: | #00219063 |
Kategori: | Boru Profil Bükme Makinası |
Marka: | Dural Makina |
Model Tipi: | Dm-38-Dh Auto |
Ürün Tipi: | Satılık |
Ürün Durumu: | Sıfır |
Menşei: | Türkiye |
Teslim Durumu: | Sipariş Üzerine |
Konum: | Gençosman Mahallesi / Güngören / İstanbul |
Kısa Detay: | 2 Yıl Garantili |
Satış Detayı: | Leasing'e Uygun, Çekle Şatış, Havale / EFT, Kredi Kartı, Görüşülür |
Satıcıyla iletişim kur
Dural Makina Dm-38-Dh Auto
Ø38x2 Automatic Double Head Tube Bending Machine
Machine Details
DM-38-DH and DM-38-Dh Auto model double head pipe bending machines will provide you maximum productivity on your work. Double head bending alternative will give you chance to work 8 times faster than standard mandrel type pipe bending machines. These models are our TUBITAK approved models, which means Dural Machinery is the first, who produced these models in the Turkish machine industry. As Dural Machine, we are continuing our research activities and production with our experience on double head pipe bending machines since 2008.
Machine Tube Bending Capacity

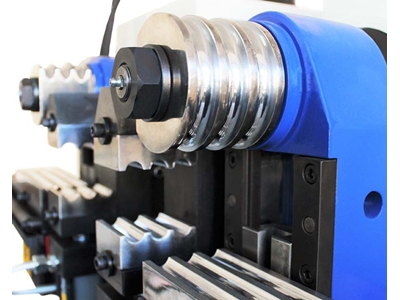

1 pc. Ø38mmx2mm
2 pcs. Ø25mmx1,5mm
3 pcs. Ø16mmx1,5mm
4 pcs. Ø13mmx1,5mm
Genaral Details |
|
2 axis servo controlled. |
|
The curvature axis is inverted controlled. |
|
Energy – saving mode. |
|
PLC control (NC control in order). |
|
Rotate in 2nd dimension 0-90°. |
|
Mono block Machine Body. |
|
Pressure die with linear Guide. |
|
Tension Arm. |
|
Automatic – Manual Mode Options. |
|
Touch screen with different language. |
|
Fully hydraulic. |
|
Foot pedal control. |
|
Easy and quick changeable tooling system. |
|
One set standard tooling. |
|
Magnetic Stop. |
|
Technical Details |
|
Max. Tube Diameter |
: Ø38 mm x 2 mm |
Max. Center Line Radius |
: 200 mm |
Bending Capability with Rotation (°) |
: 0-90 |
Shaft Diameter (mm) |
: 40 |
Clamp Opening Distance (mm) |
: 60 |
Pressure Opening Distance (mm) |
: 60 |
Max. Bending Angle (°) |
: 185 |
Min./Max. Bending Distance (mm) |
: 180-2035 |
Bending Speed (°/sec) |
: 50 |
Max. Pressure (°/sec) |
: 180 |
Total Power (kw) |
: 11.5 |
