İlan No: #00125312
Kategori: Solenoid Valf
Marka: Smc
Model Tipi: EVF1120-01
Model Yılı: 2017
Ürün Tipi: Satılık
Ürün Durumu: Sıfır ( Yeni )
Menşei: Diğer
Teslim Durumu: Hemen Teslim
İlan Tarihi: 16.03.2017
İlan Bitiş Tarihi: 01.01.2018
Konum: Bornova / İzmir / Türkiye
Kısa Detay: 2 Yıl Garantili
Satış Detayı: Kredi Kartına Taksit, Peşin, Kredi Kartı, Posta Çeki, Kapıda Ödeme
Fiyat Sorunuz
Hemen Teslim 'de Teslim
 Teklif İste
 Satıcıya Mesaj Gönder Veya Soru Sor
SATICI FİRMA BİLGİLERİ
  • +90 232 467 45 67
  • +90 232 467 45 57

Yetkili: Korhan Can

Bornova / İzmir / Türkiye

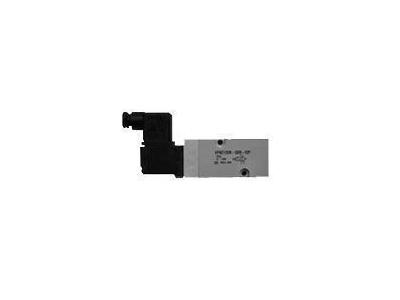

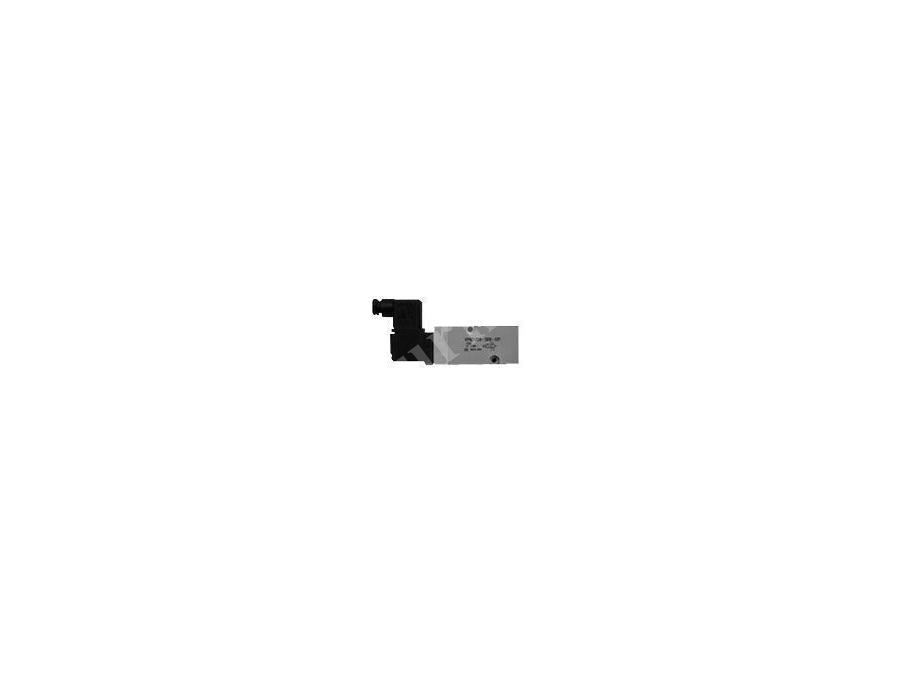

Selenoid Valf

SMC

EVF1120-01

Selenoid Valf

SPECIFICATIONS

Fluid Air
Operating pressure range 2 position single/
3 position 0.15 to 0.9MPa
2 position double 0.1 to 0.9MPa
Ambient and fluid temperature Maximum 50°C
Response time note1 2 position sgl/dbl 20ms or less (at 0.5MPa)
3 position 40ms or less (at 0.5MPa)
Maximum operating cycle 2 position sgl/dbl 10Hz
3 position 3Hz
Lubrication Not required
Manual override Non-locking push, locking slotted, locking knob
Mounting position Free
Impact/Vibration resistance note2 300/50m/s²
Enclosure Dust proof
Pilot exhaust Individual exhaust, common exhaust for main valve and pilot valve
Electrical entry Grommet, Grommet terminal, Conduit terminal,
DIN terminal, L plug connector, M plug connector
Voltages (V) AC50/60Hz 100, 200, 12*, 24*, 48*, 110*, 220*, 240*
DC 24, 6*, 12*, 48*, 100*, 110*
Allowable voltage -15 to 10% of rated voltage
Apparent power (AC)note3 In-rush 5.6VA(50Hz), 5.0VA(60Hz)
Holding 3.4VA(50Hz), 2.3VA(60Hz)
Power consumptionnote3 DC 1.8W, 2W (with LED)
Indicator light & surge voltage suppressor AC ZNR (Varistor), Neon light (LED 100V or less)
DC ZNR (Varistor), LED (Neon lamp 100V or more)
Note 1: Based on dynamic performance test JIS B8375-1981 (Coil temperature 20°C, at rated voltage, without surge voltage suppressor.)
Note 2: Impact resistance: No malfunction resulted from the impact test using a drop impact tester. The test was performed on the axis and right angle directions of the main valve and armature for both energized and de-energized states. Vibration resistance: No malfunction occurred in a one-sweep test between 8.3 and 2000Hz. Test was performed at both energized and de-energized states to the axis and right angle directions of the main valve and armature. (Value in the initial stage.)
Note 3: At rated voltage.     *option
OPTIONS

Description

Part Number Notes
Bracket DXT031-40-3A EVF3122 only
Silencer AN110-01 G(PF)1/8
MODEL for MANIFOLD
