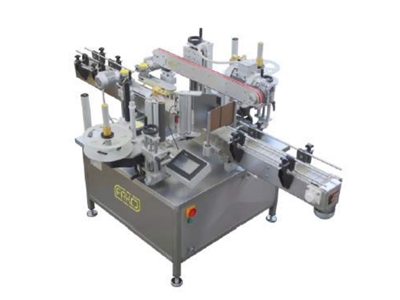

5000 Pieces / Hour Front Back Surface Labeling Machine

Fako FK-DS FAKO-S 140

5000 Pieces / Hour Front Back Surface Labeling Machine

In the intensively used front and back surface labeling process; The packaging must be positioned precisely at the moment the label is applied. The most ideal solution for positioning in areas where production quantities are relatively low will be semi-automatic systems. In this solution, the product is placed in a very simple holder and manually slid onto a carrier between the applicator. As soon as the label is applied, the product is automatically held by the system and high-precision label positioning is completed.

There is no restriction on product size in this system. Product fixing equipment can be easily replaced in a few simple steps, keeping time loss to a minimum when processing different packaging types. It is recommended to install a fully automatic system that can meet maximum precision requirements in medium and high quantity production. System; It ensures perfect positioning by moving synchronously with the conveyor belt. Fako Labeling Systems offer you the most suitable solutions for your packaging and application in the field of front and back surface labeling.

Front-Back Surface Labeling Machine FK-DS FAKO-S140 Features

• Available Machine Versions: Left and Right
• Capacity: 5000 pieces/hour (Completely depends on product and label dimensions)
• Label Giving Speed: 50 m/min.
• Label Stop Accuracy: 0.5 mm ±
• Label Width: 15-140 mm (including liner)
• Label Roll Reel: Outer ø max. 300mm
• 100 Product and Label Storage Formats
• Spool Holder with Mechanical Winder and Screw Locking System
• Anodized Aluminum Spool Discs
• Quick Release "push/pull" with Mechanical Drive Unit
• Stepper motor (Sanyo Denki)
• Rewinder with Foldable Liner Locking System
• Label Sensor with Adjustable Support (Not suitable for transparent labels)
• Blade Distribution with Angle Adjustment Up to 90°
• Integrated Control Unit with Touch Screen Operator Panel
• Dispensing Speed ​​Adjustment
• Offset and Delay Adjustment
• Label Counter
• Missing Tag Bypass
• Paper Break Alarms
• Distribution Speed ​​Control by Encoder (Encoder optional)
• Alarms and External Signals Interfaces
• Power Source: Single phase, 240V, 50/60 Hz
• Inverted speed adjustment
• Angle adjustment system for Tapered or Angled products
