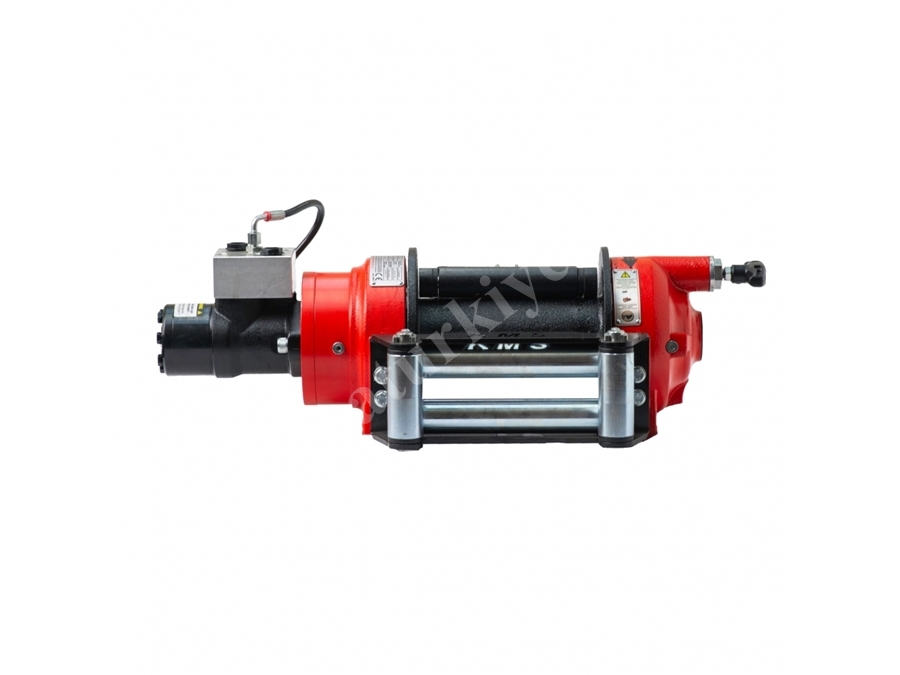

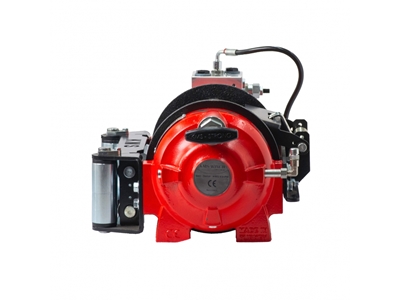

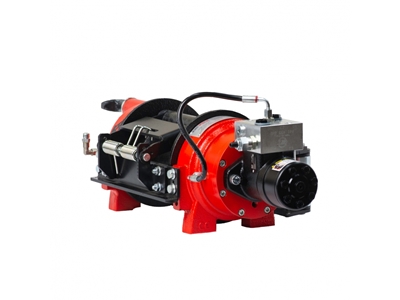

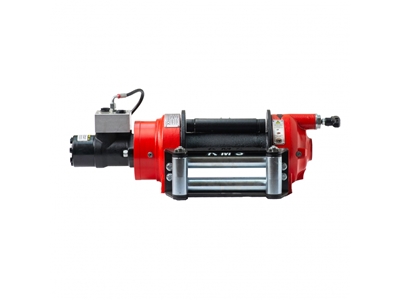

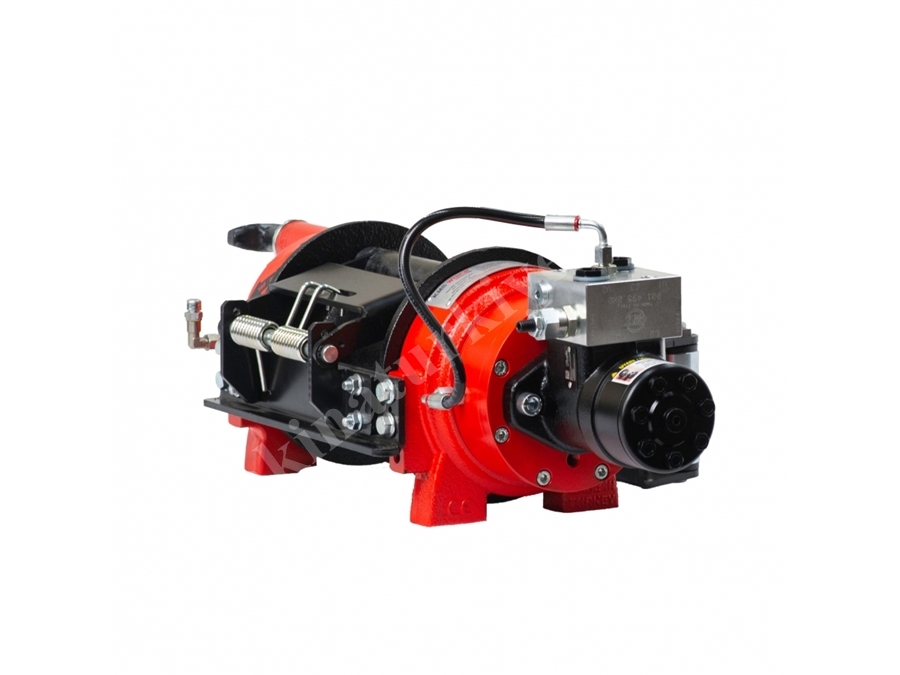

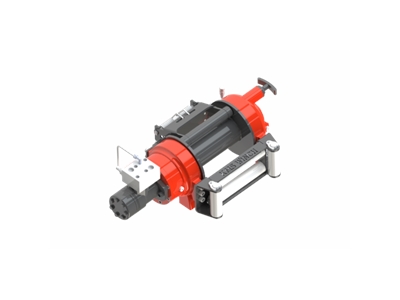

5400 Kg Pulling Force Hydraulic Winch
Fiyat Sorunuz
Min. Sipariş 1
Adet
| İlan No: | #00219716 |
| Kategori: | Halat Tamburu |
| Marka: | KMS Winch |
| Model Tipi: | KMW 5.400 PW |
| Ürün Tipi: | Satılık |
| Ürün Durumu: | Sıfır |
| Menşei: | Türkiye |
| Teslim Durumu: | Stokta Var |
| Konum: | Saray Mahallesi / Kahramankazan / Ankara |
| Satış Detayı: | Havale / EFT, Görüşülür |
Satıcıyla iletişim kur
KMS Vinç
KMS Hidrolik Vinç Sistemleri Mak. Müh. Nak. İnş. San. İç Ve Dış Tic. Ltd. Şti.
Danışman : Emrullah B.
KMS Winch KMW 5.400 PW
5400 Kg Pulling Force Hydraulic Winch
- High-strength, long-lasting steel body
- Extra reinforced planetary gear system by heat treatment made ofspecial steel
- Lightweight and strong design
- Hydraulic disc brake system holding 100% load
- Front pulley and spring rope tensioner offered as standard
- Manual clutch as standard
- High torque hydromotor
- Corrosion and rust resistant electrostatic powder paint
- CE Machinery Directive 2006/42/EC
- Relevant standards EN 14492-1 : 2006 Standard for power-drivencranes
|
Max. Pulling Force
kg/lbs
|
5.400 kg (11904 lbs) |
| Max. Rope Diameter (mm/ n) |
12 mm (1/2") |
| Max.Rope Length (m-ft) |
35 m (114 ft) |
| Hydromotor(cc/in³) | 315 cc (19 in³) |
| Max. Pump Flow (lt/min-g/min) |
60 L (15.8 gal) |
| Gear Ratio |
5 : 1
|
|
Max. Working Pressure
(bar/psi)
|
150 bar (2175 psi) |
| Recommended Gear Oil | 80 w 90 - 0.75 L |
| Product Weight | 61 kg (134 lbs) |
| Rope Winding Number | Pulling Capacity (kg/lbs) | Rope Winding Speed (mt-min/ft-min) |
Rope Length (m/ft) |
| 1 | 5400/11904 | 11.5/37 | 5.8/19 |
| 2 | 4435/9777 | 13/42 | 12.2/40 |
| 3 | 3748/8262 | 14.4/47 | 19.3/63 |
| 4 | 3246/7156 | 15.9/52 | 27.1/89 |
| 5 | 2862/6309 | 17.4/57 | 35/114 |
- Warning !!!
- The A-B lines must be open to the T-Tank line before the winch can be started.
- Hydromotor Drain line must be open
- The last 5 turns of rope should always be left on the winch.
- This winch is designed and manufactured for towing purposes, do not use for lifting people ormaterials!
- Kms Winch reserves the right to make changes in technical details.
