6014 Scissor Telescopic Deck M.P.L

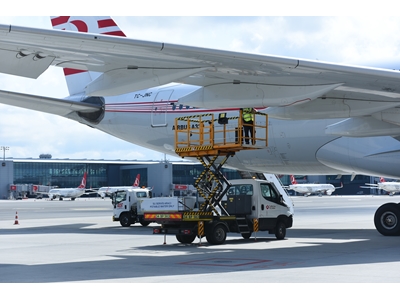

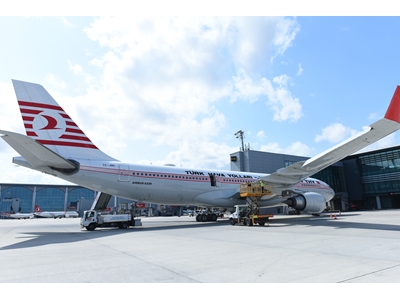

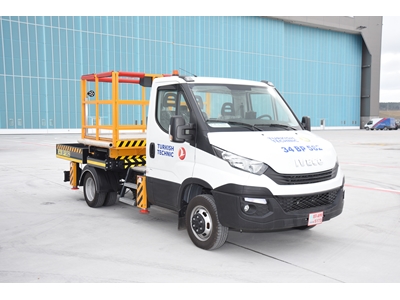

Miles GSE supplies a great variety of high quality aircraft scissor telescopic deck maintenance platform lifts to Airlines, Ground Handling Companies and Airports all around the world for aircraft ground support personnel use. Miles scissor telescopic deck maintenance platform lifts are assembled on a truck mounted chassis with a motorised scissor lift platform. Product range of Miles scissor deck M.P.L. allows customers servicing of aircraft for high level work of up to 3m, 6m or 8.5m floor height as standard.





Chassis: Standard commercial chassis (Iveco, Isuzu, MAN, Mercedes-Benz, Volvo, etc)

GVW:

• 3.500kg (upgrade to 5.000kg optional)
• 7.500kg (upgrade to 10.000kg-12.000kg optional)
• 10.000kg (upgrade to 12.000kg-15.000kg optional)

Scissor Mechanism: Miles single scissors, double scissors or triple scissors system with four hydraulic chassis stabilizers.

Platform Size: 2mx1m, 4mx2m (other sizes upon request)

Platform Payload: 200kg, 600kg (other payload upon request)

Max. Working Height: 3m, 6m, 8.5m (floor height) (other heights upon request)

Typical Options:

1. Rotating beacon
2. Safety guard rails
3. Rear access Step

Additional Options :

• Available upon request
• Platform traverse or extend above driver cab
• Removable handrails
• Shore power sockets on platform
• Air-line outlets on platform
