| İlan No: | #00204975 |
| Kategori: | Konik Kilit Sistemi |
| Marka: | UTL |
| Ürün Tipi: | Satılık |
| Ürün Durumu: | Sıfır - Yeni |
| Menşei: | Türkiye |
| Konum: | Başakşehir Mah. / Başakşehir / İstanbul |
| Garanti Durumu: | 2 Yıl Garantili |
| Satış Detayı: | Havale / EFT, Görüşülür |
| Teslim Durumu: | Stokta Var |

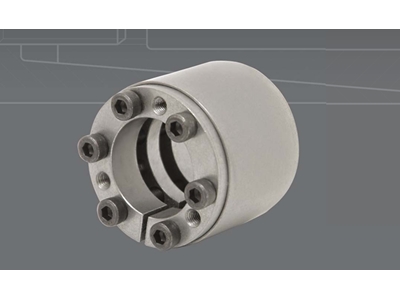

70-600 mm Taper Lock Systems The UTL 400 series features robust Taper Lock Systems designed to handle high torque applications, with sizes ranging from 70 mm to 600 mm. These systems are self-centering, making them ideal for applications requiring high transmission values and precise centering capabilities, such as belt drums. Technical Specifications and Advantages: The UTL 400 series is engineered to deliver reliable and efficient performance in demanding industrial environments. With their high torque capacity and self-centering capabilities, these Taper Lock Systems are essential for ensuring optimal operation in mechanical engineering and various other industrial sectors. It is suitable for high torques and is self-centering. Recommended for applications that requires high transmission values and excellent centering capabilities such as belt drums. 70 - 600 mm Taper Lock Systems Technical Specification:
Sipariş Kodu / Code
Ölçüler / Dimensions
Bağlantı elemanları / Tightening screws
Başarımlar / Performances
Ağırlık / Weight kg
d
D
L1
L
DIN 912
Ma
Mt
Fass
Ps
Ph
mm
mm
mm
mm
Ad.
12.9 TİP
Nm
Nm
kN
N/mm²
N/mm²
UTL400 - 70
70
110
62
72
8
M10
83
7.280
208
197
125
2,3
UTL400 - 80
80
120
62
72
10
M10
83
10.400
260
216
144
2,5
UTL400 - 90
90
130
62
72
11
M10
83
12.900
286
211
146
2,7
UTL400 - 100
100
145
72
84
10
M12
145
19.400
388
215
148
4,1
UTL400 - 100
110
155
72
84
10
M12
145
21.400
388
195
138
4,4
UTL400 - 120
120
165
72
84
11
M12
145
25.600
427
197
143
4,8
UTL400 - 130
130
180
82
94
14
M12
145
3.530
544
205
148
6,3
UTL400 - 140
140
190
82
94
15
M12
145
40.800
582
204
151
6,6
UTL400 - 150
150
200
82
94
15
M12
145
43.700
582
191
143
7,8
UTL400 - 160
160
210
82
94
16
M12
145
49.700
621
191
145
7,4
UTL400 - 170
170
225
93
107
15
M14
230
67.500
795
194
146
10,7
UTL400 - 180
180
235
93
107
15
M14
230
71.500
795
183
140
11,3
UTL400 - 190
190
250
105
119
16
M14
230
80.500
848
156
118
14,6
UTL400 - 200
200
260
105
119
18
M14
230
95.300
950
166
128
15,3
UTL400 - 220
220
285
111
127
15
M16
355
119.000
1.080
159
123
20,2
UTL400 - 240
240
305
111
127
20
M16
355
173.000
1.440
194
153
21,8
UTL400 - 260
260
325
111
127
21
M16
355
196.800
1.510
188
151
23,4
UTL400 - 280
280
355
111
131
15
M20
690
237.300
1.690
211
167
30
UTL400 - 300
300
375
111
131
15
M20
690
254.200
1.690
197
158
31,2
UTL400 - 320
320
405
136
156
20
M20
690
361.500
2.260
195
154
48
UTL400 - 340
340
425
136
156
20
M20
690
384.100
2.260
184
147
51
UTL400 - 360
360
455
160
182
20
M22
930
498.700
2.770
170
135
69
UTL400 - 380
380
475
160
182
22
M22
930
526.400
2.770
161
129
73
UTL400 - 400
400
495
160
182
24
M22
930
609.500
3.050
168
136
76
UTL400 - 420
420
515
160
182
24
M22
930
698.200
3.320
175
143
80
UTL400 - 440
440
535
160
182
24
M22
930
731.400
3.320
167
137
81
UTL400 - 460
460
555
160
182
24
M22
930
764.700
3.320
160
132
85
UTL400 - 480
480
575
160
182
25
M22
930
831.200
3.460
159
133
88
UTL400 - 500
500
595
160
182
25
M22
930
866.000
3.460
153
129
91
UTL400 - 520
520
615
160
182
28
M22
930
1.008.000
3.880
165
139
95
UTL400 - 540
540
635
160
182
28
M22
930
1.047.000
3.880
159
135
98
UTL400 - 560
560
655
160
182
30
M22
930
1.164.000
4.160
164
140
101
UTL400 - 580
580
675
160
182
30
M22
930
1.205.000
4.160
158
136
104
UTL400 - 600
600
695
160
182
30
M22
930
1.247.000
4.160
153
132
108
