2524 Full Automatic Concrete Block Machines

Fiyat Sorunuz
Min. Sipariş 1 Adet

İlan No: #00229410
Kategori: Briket ve Parke Taşı Makinası
Marka: Merkon
Model Tipi: 2524
Ürün Tipi: Satılık
Ürün Durumu: Sıfır
Menşei: Türkiye
Teslim Durumu: Stokta Var
Konum: Koçullu Köyü / Çekmeköy / İstanbul
Satış Detayı: Havale / EFT, Görüşülür

Satıcıyla iletişim kur

Merkon Makine

Merkon Kalıp Makine Sanayi Ve Ticaret Ltd. Şti.

Danışman : Safa M.

Merkon 2524

2524 Full Automatic Concrete Block Machines



The 3018 is the most economical double bunker block machine from the Merkon.

It is a compact machine ideal for budget-friendly entry-level manual production. All kinds of products with a height of 6 cm to 20 cm are produced in a printing area of half a square meter, with a single or double mixture upon request. Controlled by an operator, the compact system is equipped with an automatic stacking robot to speed up handling and increase productivity. Since pallets have small dimensions, their weight allows handling with human power. It can be fed with compact mixers, mortar can be transported with simple and plain solutions, and with extremely fast installation times, the 3018 is the rational choice of investors who will enter the sector for the first time.

Despite the medium-sized production area, the production of full-length borders is not difficult at all for the 2524. With the horizontal product cleaning brush option, it is possible to use the production area in the most efficient way.

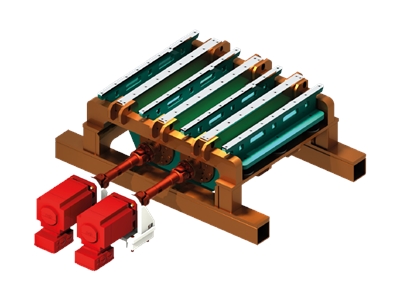

Connected with bellows, it is best exposed to vibration.
Syntheticaadjustments that can be made according to the product and the mortar have a direct effect on the strength of the product. In this way, it is aimed to benefit from the vibration intensity produced in the most optimal way.

Merkon’s Servo Vibration experience is applied to a mid-scale machine. Result: Astonishing concrete quality. With its vibration power unrivaled in its class, the 2524 has comfortably outshined heavy and expensive machines since the first moment it went into production.

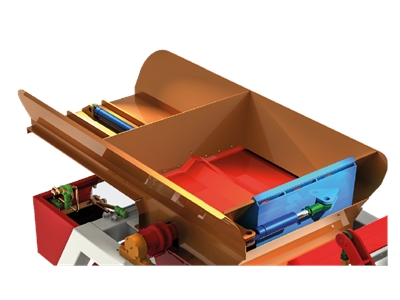

Color-mix attachment that makes production of uniqueble concrete products afforda ble. Simple yet smart solu tions are everyday in Merkon.

Merkon 2524 Technical Specification

MERKON 2524 Full Automatic
Production Time 25 Sn.
Footed Pallet Size 900 x 1350 x 50Cm
Mold (Production) Area 0,75 m2
Minimum Product Height 40 mm
Maximum Product Height 400 mm
Total Power 60 Kw.
Main Hydraulic Motor 15 Kw.
Auxiliary Hydraulic Motor 7,5 Kw.
Servo Main Vibrator 2 x 70 Kn.
Top Vibrator 1 x 18 Kn.
Operating Pressure 180 Bar.
Mold - Press Control Linear Ruler
Mold Feeding Support Jerky Grid
Rough Table Body 1490x2500x20 mm Hardox 450
Thin Table Body 1490x2350x20 mm Hardox 450
Mortar Carts Control Sensor
