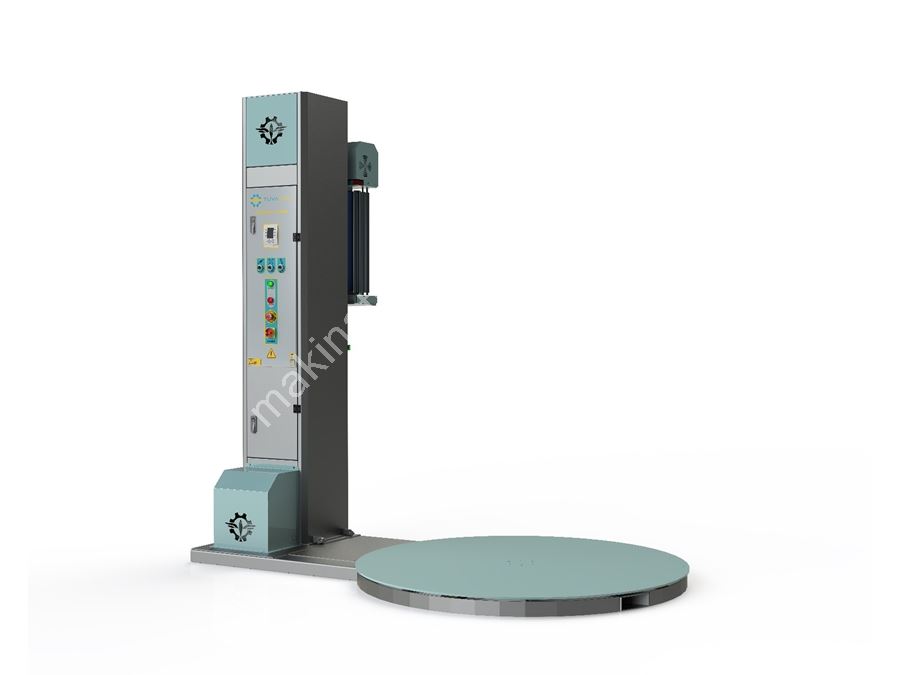

3 Motors Pre-Stretching Automatic Pallet Stretch Wrapping Machine

Tuva Pack TM-PS2000-S

3 Motors Pre-Stretching Automatic Pallet Stretch Wrapping Machine

Automatic Pallet Stretch Wrapping Machine has a motorized pre-tensioning system. | Thanks to the pre-stretching motor, it extends the stretch and provides 4 times more use.

Total 3 Motors and Speed ​​Control Driver

The operator operates the machine by manually attaching the stretch to the pallet.

Thanks to the sensor on it, it automatically detects the pallet length.

After the pallet stretch wrapping process is completed, the stretch is cut by the staff and the pallet becomes ready for storage.

Adjustable number of turns up and down and number of turns up and down.

Touch PLC operator panel, Recipe (recordable memory) system.

Automatic Pallet Stretch Wrapping Machine Options

2.10 meters and 3.10 meters maximum pallet length options.,

Rotary Table Unit: Ø 1650 mm – 1800 mm – 2000 mm

Loading ramp with pallet truck.

Mechanical or motorized pre-tensioning system.

Press (overpress) unit

Tuva TM-PS2000-S Technical Specifications

Suitable Pallet Dimensions : Weight: max. 2000kg | Height: 500 mm - 2100 mm

Rotary Table Speed : 1-10 Turns / Minute

Electricity: 220 V. 50 Hz. 1 Ph.

Stretch Diameter: Inner Diameter: 75mm | Outside Diameter: 200mm (max.) | 17-25 microns

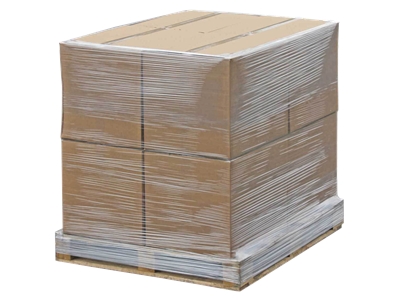

--- It stretches your products by stretching the stretch film on the pallet without damaging them.

Thus, the packaging cost of palletized products is reduced and time is saved.

Dust, moisture, tipping, etc. during transportation and storage. It protects the product from damage. ---

Delivery and Other Details

The machines are covered by a 2-YEAR warranty against production defects.

10-year spare parts supply, maintenance and service warranty

Spare parts lists of machinery and equipment, maintenance and user manual, and training video are provided.

Our prices do not include VAT.
