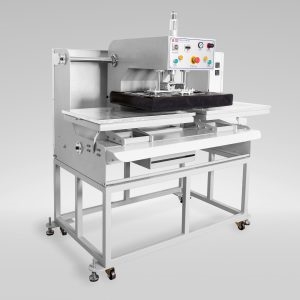

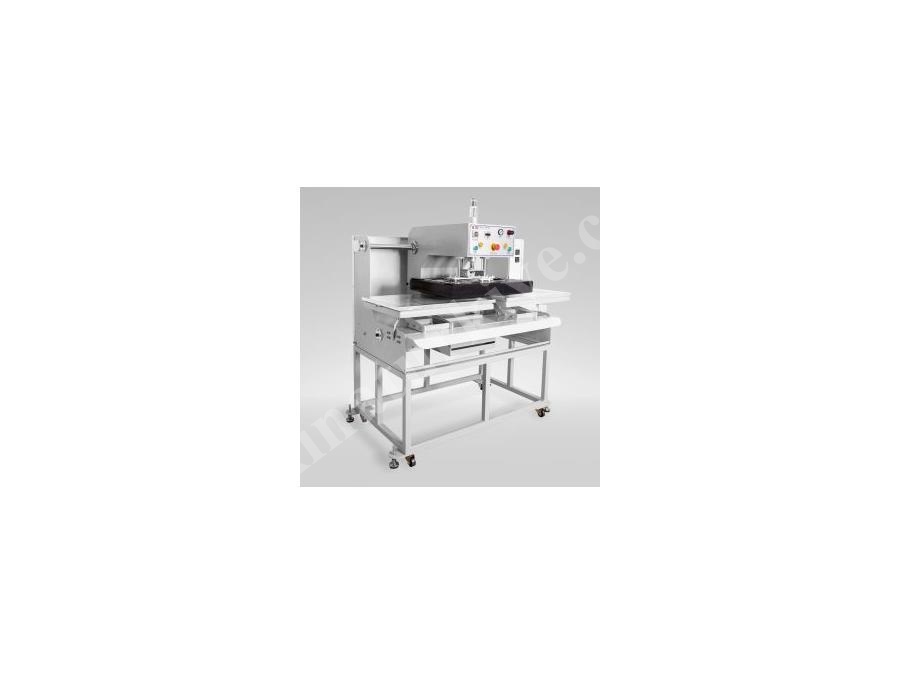

50×70 Automatic Nylon Fusing Machines

Our automatic nylon fusing machine is used in the embroidery processes of textile in general and offer a rapid and practical solution for cleaning of waste yarn left behind products. Transfer heat press operates via a pneumatic system. The head on the upper table is loaded onto the induction shaft and it can; thus, very easily moves automatically rightward and leftward. This body is also equipped with a control panel. Heat, time, and pressure can be adjusted on the control panel. Transfer heat pressure can be adjusted between 0 to 6 bars depending on the assignment. The upper table functions as a transfer press and is coated with a special Teflon tape with an interior heat insulation rubber that prevents any damage to the products worked. Once the two lower tables have heat up to the desired level, nylon interlining is covered thereon to healthily start the cleaning process.



TECHNICAL CHARACTERISTICS	ERT 50×70	ERT 60×80
RESISTANCE POWER	6 KW	8 KW
FUSING DURATION	10 – 60 SN	10 – 60 SN
PRESSURE	0 – 10 KG	0 – 10 KG
MAX TEMPERATURE	0 – 200 °C	0 – 200 °C
VOLTAGE	380V AC 50 HZ	380V AC 50 HZ
DIMENSIONS	100 x 180 x 170 cm	100 x 180 x 170 cm
WEIGHT	450 kg	550 kg
